DSC2140 Datasheet, Oscillator, Discera

DSC2140 Features

  • Oscillator Low RMS Phase Jitter: <1 ps (typ) High Stability: ±10, ±25, ±50 ppm Wide Temperature Range o Industrial: -40° to 85° C o Ext. commercial: -20° to 70° C High Supply Noise Rejection: -50

PDF File Details

Part number:

DSC2140

Manufacturer:

Discera

File Size:

491.15kb

Download:

📄 Datasheet

Description:

Low-jitter i2c/spi programmable hcsl oscillator. The DSC2140 and DSC2240 series of programmable, high-performance HCSL oscillators utilizes a proven silicon MEMS technology to provid

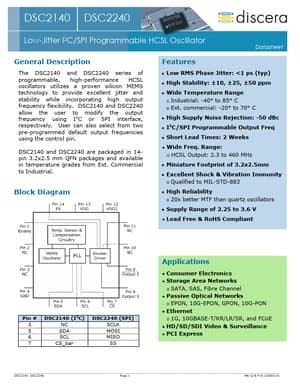

Datasheet Preview: DSC2140 📥 Download PDF (491.15kb)
Page 2 of DSC2140 Page 3 of DSC2140
