DFD30N06 - N-Channel MOSFET

DnI

The DFD30N06 by DnI is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

DFD30N06 N-Channel MOSFET by DnI - Datasheet Preview — Official preview page of the **DFD30N06** N-Channel MOSFET datasheet (DnI).

Datasheet Details

Part number	DFD30N06
Manufacturer	DnI
File Size	818.01 KB
Description	N-Channel MOSFET
Datasheet	DFD30N06_DnI.pdf

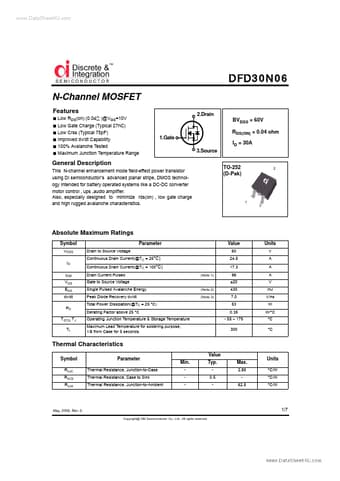

Additional preview pages of the DFD30N06 datasheet.

DFD30N06 Product details

Description

This N-channel enhancement mode field-effect power transistor using DI semiconductor’s advanced planar stripe, DMOS technology intended for battery operated systems like a DC-DC converter motor control , ups ,audio amplifier.

Features

Low RDS(on) (0.04Ω )@VGS=10V Low Gate Charge (Typical 27nC) Low Crss (Typical 75pF) Improved dv/dt Capability 100% Avalanche Tested Maximum Junction Temperature Range 2.Drain BVDSS = 60V 1.Gate 3.Source RDS(ON) = 0.04 ohm ID = 30A General.
