DTF20A80

Triacs

DTF20A80 Features

* Repetitive Peak Off-State Voltage : 800V R.M.S On-State Current ( IT(RMS)= 20 A ) High Commutation dv/dt Isolation Voltage ( VISO = 2500V AC ) 2.T2 BVDRM = 800V IT(RMS) = 20 A 3.Gate 1.T1 ITSM = 200 A TO-220F General Description This device is fully isolated package suitable for AC switching ap

DTF20A80 General Description

This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperature modulation control, industrial and domestic lighting control and static switching relay. 1 2 3 Absolute Maximum Ratings Symbol VDRM IT(RMS) ITSM I2 t PGM PG(AV).

DTF20A80 Datasheet (551.35 KB)

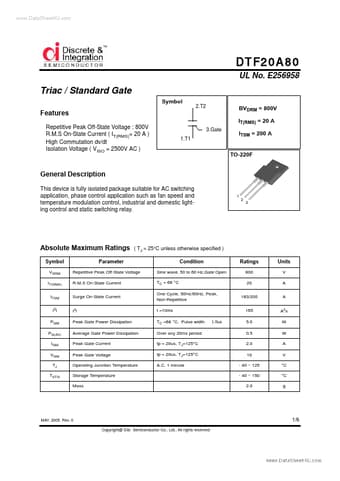

Preview of DTF20A80 PDF

Datasheet Details

Part number:

DTF20A80

Manufacturer:

DnI

File Size:

551.35 KB

Description:

Triacs.
