DK813 Datasheet - DongKe Semicondutor

Non-Isolated BUCK Active PFC LED Driver

DK813 Features

* ±3% LED Output Current Accuracy.

* Build-in 700V power transistor.

* 85V

* 265V wide range AC power input.

* Quasi-resonant mode, high circuit efficiency, η>90%.

* Patent self-power supply circuit design, no need for external winding power supply.

* Single-Stage Activ

DK813 General Description

The DK813 is a LED Driver IC designed specially for Non-Isolated high PFC BUCK circuit. It integrates 700V high voltage power transistor and primary peak current detecting circuit. It also includes Active Power Factor Correction, Output Voltage Control, Self-Power supply and LED loading circuit auto.

DK813 Datasheet (241.06 KB)

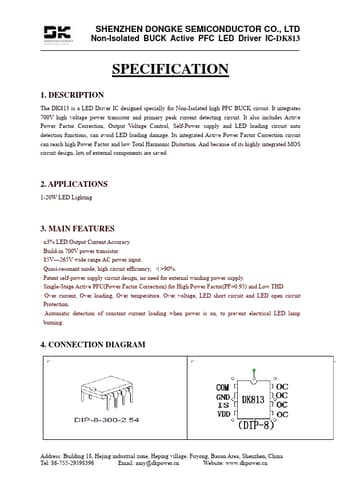

DK813 Datasheet Preview — Preview of DK813 PDF

Datasheet Details

Part number:

DK813

Manufacturer:

DongKe Semicondutor

File Size:

241.06 KB

Description:

Non-isolated buck active pfc led driver.
