DK912

High Precision CC/CV Primary-Side Converter

DK912 Features

* Build-in 700V high voltage power transistor.

* 85V

* 265V AC universal input range allows worldwide operation.

* Integrated high voltage constant current starting circuit, no need for additional starting resistance.

* Patent Primary Side Regulation control to simplify the cir

DK912 General Description

The DK912 is a primary side flyback type AC-DC Switch Mode Power Controlling IC. It integrates 700V high voltage power transistor and primary side peak current detecting circuit. It also includes Primary Side Constant Current Regulation, Constant Voltage Control, Self-Power supply circuit and Output.

DK912 Datasheet (302.61 KB)

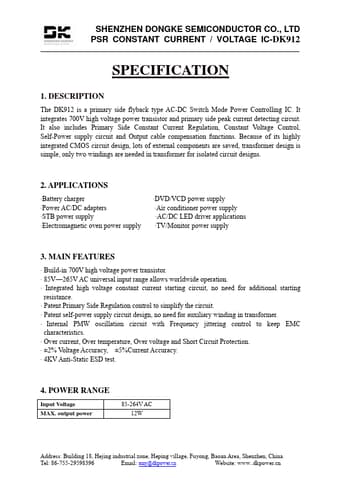

Preview of DK912 PDF

Datasheet Details

Part number:

DK912

Manufacturer:

DongKe Semicondutor

File Size:

302.61 KB

Description:

High precision cc/cv primary-side converter.
