XW120N03 N-Ch Fast Switching MOSFETs

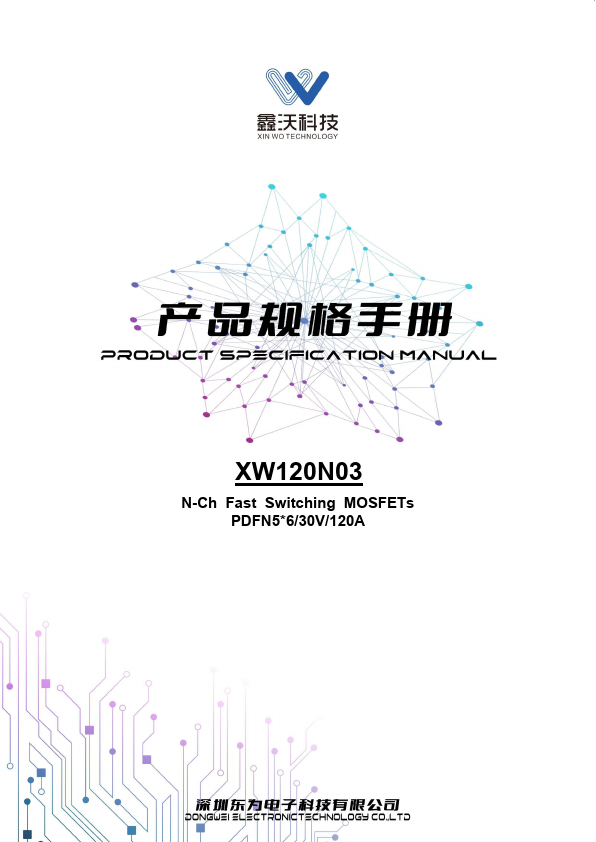

📥 Download Datasheet Datasheet Preview Page 1

Description

XW120N03 N-Ch Fast Switching MOSFETs PDFN5 *6/30V/120A XW120N03 N-Ch 30V Fast Switching MOSFETs * Super Low Gate Charge * 100% EAS Guaran.
The XW120N03 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter.

📥 Download Datasheet

Preview of XW120N03 PDF

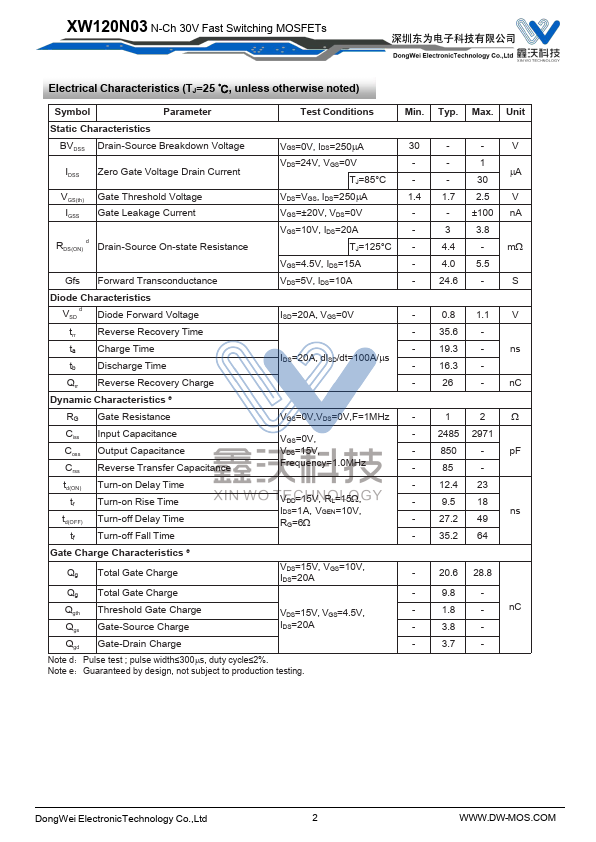

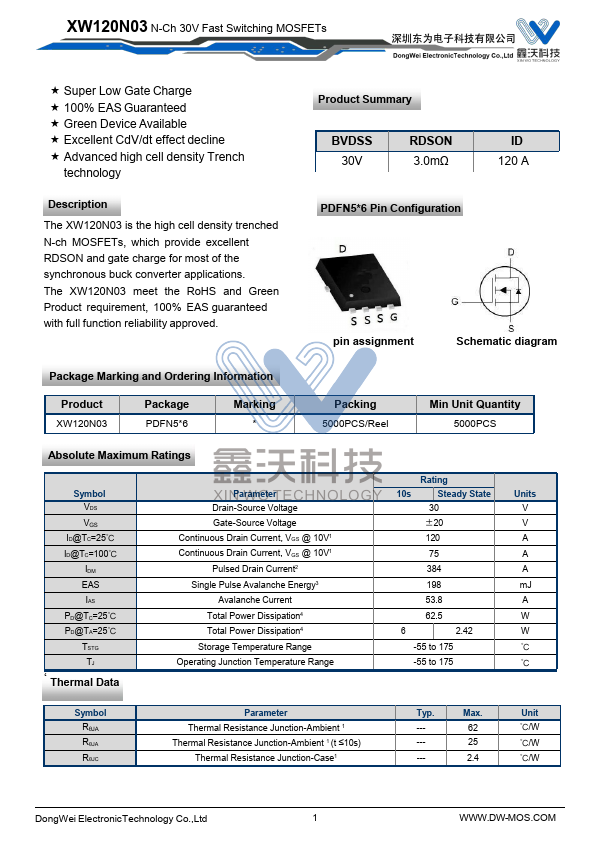

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XW120N03
Manufacturer
DongWei
File Size
0.99 MB
Datasheet
XW120N03-DongWei.pdf
Description
N-Ch Fast Switching MOSFETs

Applications

* The XW120N03 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved. Product Summary BVDSS 30V RDSON 3.0mΩ ID 120 A PDFN5
* 6 Pin Configuration pin assignment Schematic diagram Package Marking and Ordering Information Product XW120N03 Pa
