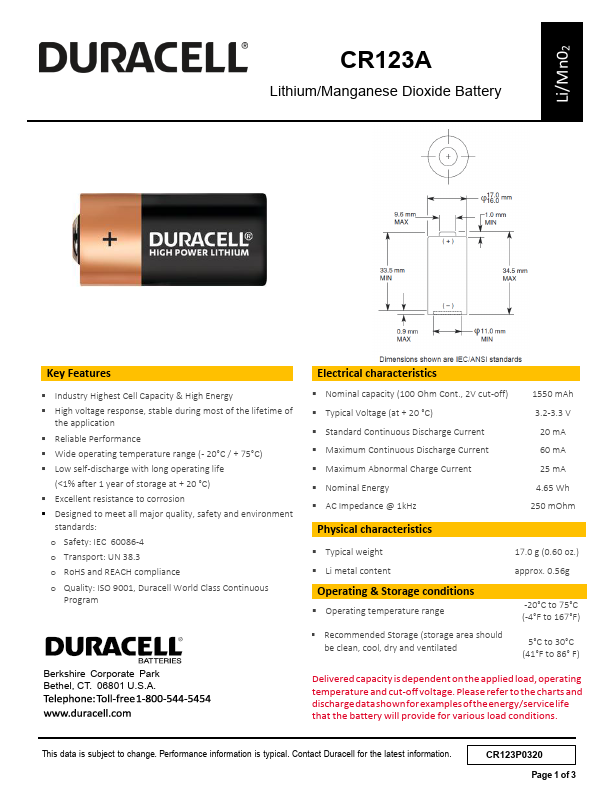

CR123A
Features
- Industry Highest Cell Capacity & High Energy
- High voltage response, stable during most of the lifetime of the application
- Reliable Performance
- Wide operating temperature range (- 20°C / + 75°C)
- Low self-discharge with long operating life
(<1% after 1 year of storage at + 20 °C)
- Excellent resistance to corrosion
- Designed to meet all major quality, safety and environment standards: o Safety: IEC 60086-4 o Transport: UN 38.3 o Ro HS and REACH pliance o Quality: ISO 9001, Duracell World Class Continuous
Program
Berkshire Corporate Park Bethel, CT. 06801 U.S.A.
Electrical characteristics
- Nominal capacity (100 Ohm Cont., 2V cut-off)
- Typical Voltage (at + 20 °C)
- Standard Continuous Discharge Current
- Maximum Continuous Discharge Current
- Maximum Abnormal Charge Current
- Nominal Energy
- AC Impedance @ 1k Hz
1550 m Ah 3.2-3.3 V
20 m A 60 m A 25 m A 4.65 Wh 250 m Ohm
Physical characteristics
- Typical weight
17.0 g (0.60 oz.)
- Li metal content approx....
