MN1400 Alkaline Manganess Dioxide Battery

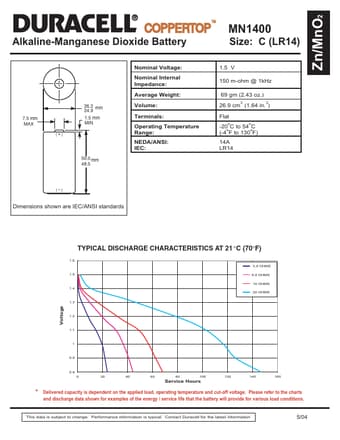

Voltage Zn/MnO2 TM COPPERTOP MN1400 Alkaline-Manganese Dioxide Battery Size: C (LR14) 7.5 mm MAX (+) 26.2 24.9 mm 1.5 mm MIN 50.0 mm 48.5 Nominal Voltage: Nominal Internal Impedance: Average Weight: Volume: Terminals: Operating Temperature Range: NEDA/ANSI: IEC: 1.5 V 150 m-ohm @ 1kHz 69 gm (2.43 oz.) 26.9 cm3 (1.64 in.3) Flat -20oC to 54oC (-4oF to 130oF) 14A LR14 ( ) Dimensions shown are IEC/ANSI standards TYPICAL DISCHARGE CHARACTERISTICS AT 21 °C (70°F) 1.6 3.9 OHMS 1.5 .

MN1400 Datasheet (76.45 KB)

MN1400 Datasheet Preview — Preview of MN1400 PDF

Datasheet Details

Part number:

MN1400

Manufacturer:

Duracell

File Size:

76.45 KB

Description:

Alkaline manganess dioxide battery.
