DCR1474SY, Phase Control Thyristor

DCR1474SY DCR1474SY Phase Control Thyristor Advance Information Replaces January 2000 version, DS4649-5.0 DS4649-6.0 July 2001 .

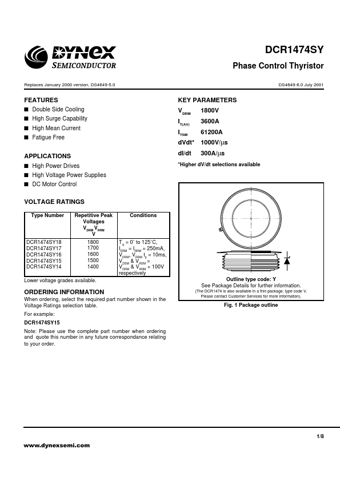

datasheet Preview Page 1 from Datasheet4u.com

DCR1474SY_DynexSemiconductor.pdf

DCR1474SY Datasheet Preview — Preview of DCR1474SY PDF

Datasheet Details

Part number:

DCR1474SY

Manufacturer:

Dynex Semiconductor

File Size:

89.11 KB

Description:

Phase Control Thyristor

Features

* s Double Side Cooling s High Surge Capability s High Mean Current s Fatigue Free KEY PARAMETERS VDRM IT(AV) ITSM dVdt

Applications

* s High Power Drives s High Voltage Power Supplies s DC Motor Control
* Higher dV/dt selections available VOLTAGE RATINGS Type Number Repetitive Peak Voltages VDRM VRRM V 1800 1700 1600 1500 1400 Conditions DCR1474SY18 DCR1474SY17 DCR1474SY16 DCR1474SY15 DCR1474SY14 Tvj = 0˚ to 125˚C, IDRM = I
