DCR3990A45, DCR3990A52, Phase Control Thyristor

www.DataSheet4U.com DCR3990A52 Phase Control Thyristor Preliminary Information DS5940-1.0 March 2009 (LN 26623) .

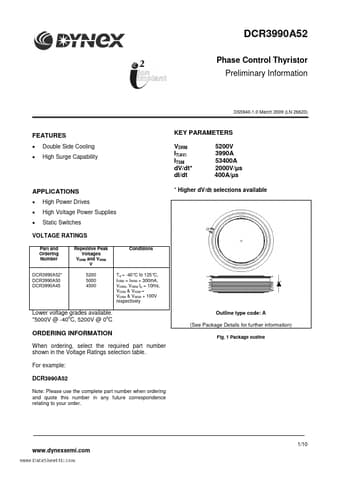

datasheet Preview Page 1 from Datasheet4u.com

DCR3990A52_DynexSemiconductor.pdf

DCR3990A45 Datasheet Preview — This datasheet PDF includes multiple part numbers: DCR3990A45, DCR3990A52. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DCR3990A45, DCR3990A52

Manufacturer:

Dynex Semiconductor

File Size:

1.31 MB

Description:

Phase Control Thyristor

Note:

This datasheet PDF includes multiple part numbers: DCR3990A45, DCR3990A52.
Please refer to the document for exact specifications by model.

Features

* Double Side Cooling High Surge Capability KEY PARAMETERS VDRM IT(AV) ITSM dV/dt

Applications

* High Power Drives High Voltage Power Supplies Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V 5200 5000 4500 Conditions
* Higher dV/dt selections available DCR3990A52
* DCR3990A50 DCR3990A45 Tvj = -40° C to 125° C, IDRM = IRRM = 300mA, VDRM
