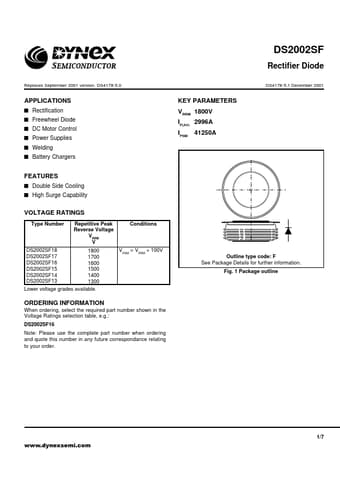

DS2002SF
FEATURES s Double Side Cooling s High Surge Capability
VOLTAGE RATINGS
Type Number Repetitive Peak Reverse Voltage VRRM V Conditions
DS2002SF18 1800 DS2002SF17 1700 DS2002SF16 1600 DS2002SF15 1500 DS2002SF14 1400 DS2002SF13 1300 Lower voltage grades available.
VRSM = VRRM + 100V
Outline type code: F See Package Details for further information. Fig. 1 Package outline
ORDERING INFORMATION
When ordering, select the required part number shown in the Voltage Ratings selection table, e.g.: DS2002SF16 Note: Please use the plete part number when ordering and quote this number in any future correspondance relating to your order.
1/7
.dynexsemi.
CURRENT RATINGS
Tcase = 75o C unless otherwise stated Symbol Double Side Cooled IF(AV) IF(RMS) IF Mean forward current RMS value Continuous (direct) forward current Half wave resistive load 2996 4707 4122 A A A Parameter Conditions Max. Units
Single Side Cooled (Anode side) IF(AV) IF(RMS) IF Mean forward current RMS value Continuous...
