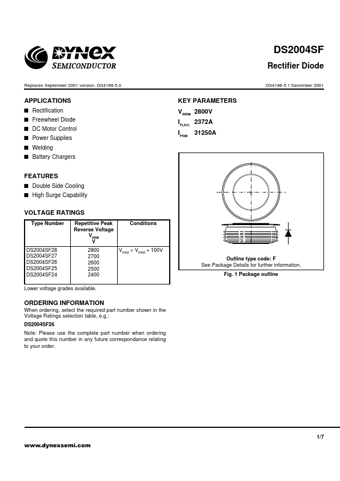

DS2004SF
FEATURES s Double Side Cooling s High Surge Capability
VOLTAGE RATINGS
Type Number Repetitive Peak Reverse Voltage VRRM V 2800 2700 2600 2500 2400 Conditions
DS2004SF28 DS2004SF27 DS2004SF26 DS2004SF25 DS2004SF24
VRSM = VRRM + 100V Outline type code: F See Package Details for further information. Fig. 1 Package outline
Lower voltage grades available.
ORDERING INFORMATION
When ordering, select the required part number shown in the Voltage Ratings selection table, e.g.: DS2004SF26 Note: Please use the plete part number when ordering and quote this number in any future correspondance relating to your order.
1/7
.dynexsemi.
CURRENT RATINGS
Tcase = 75o C unless otherwise stated Symbol Double Side Cooled IF(AV) IF(RMS) IF Mean forward current RMS value Continuous (direct) forward current Half wave resistive load 2372 3726 3352 A A A Parameter Conditions Max. Units
Single Side Cooled (Anode side) IF(AV) IF(RMS) IF Mean forward current RMS value Continuous (direct) forward...
