SV1020K, SV10xx Rectifier Diode

Dynex Semiconductor

Description

Replaces March 1998 version, DS4084-2.3 APPLICATIONS s Rectification s Freewheel Diode s DC Motor Control s Power Supplies s Welding s Battery Charge.

📥 Download Datasheet

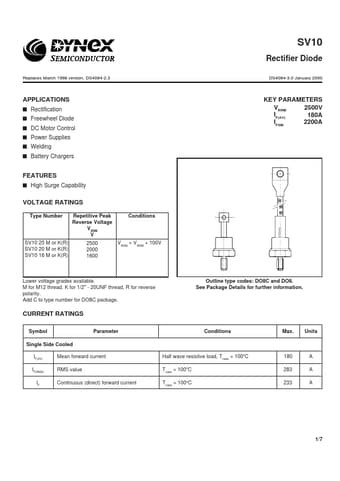

SV1020K Datasheet Preview — This datasheet PDF includes multiple part numbers: SV1020K, SV10xx. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SV1020K, SV10xx
Manufacturer: Dynex Semiconductor
File Size: 135.54 KB
Datasheet: SV10xx_DynexSemiconductor.pdf
Description: Rectifier Diode
Note: This datasheet PDF includes multiple part numbers: SV1020K, SV10xx.
Please refer to the document for exact specifications by model.

Features

* s High Surge Capability VOLTAGE RATINGS Type Number Repetitive Peak Reverse Voltage V RRM V SV10 25 M or K(R) SV10 20 M or K(R) SV10 16 M or K(R) 2500 2000 1600 Conditions V = V + 100V RSM RRM SV10 SV10 Rectifier Diode DS4084-3.0 January 2000 KEY PARAMETERS VRRM IF(AV) IFSM 2500V 180A 2
