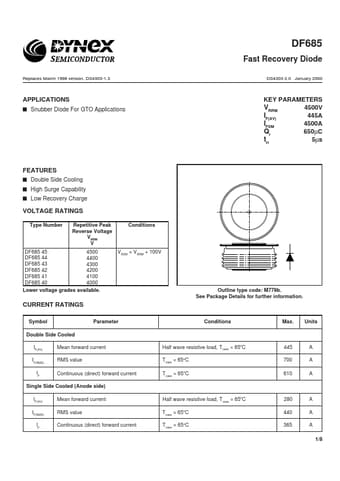

* s Double Side Cooling s High Surge Capability s Low Recovery Charge VOLTAGE RATINGS Type Number Repetitive Peak Reverse Voltage VRRM V Conditions DF685 45 4500 DF685 44 4400 DF685 43 4300 DF685 42 4200 DF685 41 4100 DF685 40 4000 Lower voltage grades available. VRSM = VRRM + 100V Outline type co
DF68543
Dynex
70.53 KB
Fast recovery diode.
DF685
DF685
Fast Recovery Diode
Replaces March 1998 version, DS4303-1.3 DS4303-2.0 January 2000
APPLICATIONS
s Snubber Diode For GTO Applications
K.
