DFM1200AXM45-TS001 Fast Recovery Diode Module

Dynex

Description

DFM1200AXM45-TS001 Fast Recovery Diode Module DS6146-1 April 2014 (LN31501) .

📥 Download Datasheet

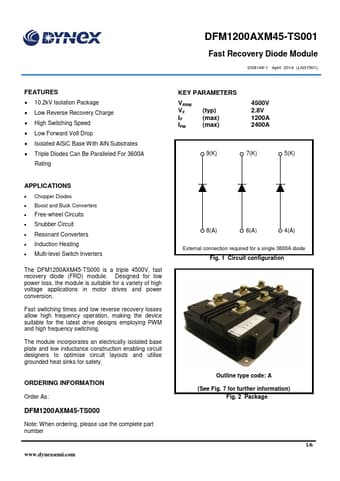

DFM1200AXM45-TS001 Datasheet Preview — Preview of DFM1200AXM45-TS001 PDF

Datasheet Specifications

Part number: DFM1200AXM45-TS001
Manufacturer: Dynex
File Size: 263.70 KB
Datasheet: DFM1200AXM45-TS001-Dynex.pdf
Description: Fast Recovery Diode Module

Features

* 10.2kV Isolation Package
* Low Reverse Recovery Charge
* High Switching Speed
* Low Forward Volt Drop
* Isolated AlSiC Base With AlN Substrates
* Triple Diodes Can Be Paralleled For 3600A Rating KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 4500V 2.8V 1200A 2400A 9(K

Applications

* Chopper Diodes
* Boost and Buck Converters
* Free-wheel Circuits
* Snubber Circuit
* Resonant Converters
* Induction Heating
* Multi-level Switch Inverters The DFM1200AXM45-TS000 is a triple 4500V, fast recovery diode (FRD) module. Designed for low power loss, the modul
