DFM200PXM33-A000

Fast Recovery Diode Module Preliminary Information

DFM200PXM33-A000 Features

* s Low Reverse Recovery Charge s High Switching Speed s Low Forward Voltage Drop s Isolated Base s MMC Baseplate With AlN Substrates KEY PARAMETERS VRRM VF (typ) (max) IF (max) IFM 3300V 2.5V 200A 400A APPLICATIONS s Chopper Diodes s Boost and Buck Converters s Free-wheel Circuits s Snubber Circui

DFM200PXM33-A000 Datasheet (152.80 KB)

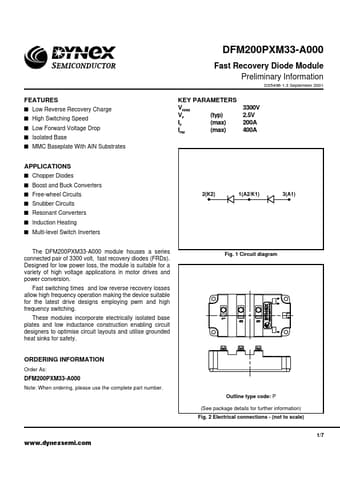

Preview of DFM200PXM33-A000 PDF

Datasheet Details

Part number:

DFM200PXM33-A000

Manufacturer:

Dynex

File Size:

152.80 KB

Description:

Fast recovery diode module preliminary information.
