DK13FX - Fast Switching Thyristor

Features

  • s Low Switching Losses At High Frequency s Fully Characterised For Operation Up To 20kHz KEY.

📥 Download Datasheet

Datasheet preview – DK13FX

Datasheet Details

Part number DK13FX
Manufacturer Dynex
File Size 307.79 KB
Description Fast Switching Thyristor
Datasheet download datasheet DK13FX Datasheet
Additional preview pages of the DK13FX datasheet.

📁 Similar Datasheet

  • DK1301-7R - 150 Watt DC-DC Converters (Power-One)
  • DK100-B020 - DC Current transducer (LEM)
  • DK100-B10 - DC Current transducer (LEM)
  • DK100-B420 - DC Current transducer (LEM)
  • DK100-B5 - DC Current transducer (LEM)
  • DK1000R - 315MHZ REMOTE KEYLESS ENTRY RECEIVER (RF Micro Devices)
  • DK106 - HIGH PERFORMANCE SWITCH MODE POWER CONTROLLER (DongKe Semicondutor)
  • DK112 - High-performance switching power supply controller (DK)
  • DK1203 - AC-DC Switch Mode Power controller (DongKe Semicondutor)
  • DK1208 - 12W high-performance quasi-resonant switching power supply controller (DongKe Semicondutor)
Other Datasheets by Dynex

Full PDF Text Transcription

Click to expand full text

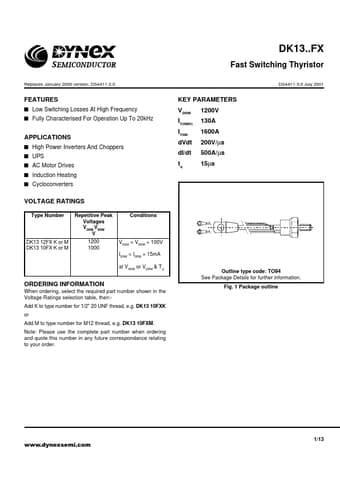

DK13..FX DK13..FX Fast Switching Thyristor Replaces January 2000 version, DS4411-2.0 DS4411-3.0 July 2001 FEATURES s Low Switching Losses At High Frequency s Fully Characterised For Operation Up To 20kHz KEY PARAMETERS VDRM IT(RMS) ITSM dVdt dI/dt tq 1200V 130A 1600A 200V/µs 500A/µs 15µs APPLICATIONS s High Power Inverters And Choppers s UPS s AC Motor Drives s Induction Heating s Cycloconverters VOLTAGE RATINGS Type Number Repetitive Peak Voltages VDRM VRRM V 1200 1000 Conditions DK13 12FX K or M DK13 10FX K or M VRSM = VRRM + 100V IDRM = IRRM = 15mA at VRRM or VDRM & Tvj Outline type code: TO94 See Package Details for further information. Fig.
