MIL-DTL-10544 Description

Ten-pin heritage design MIL-DTL-10544 connectors MIL-DTL-10544 plugs and receptacles Eaton offers a comprehensive range of MIL-DTL-10544 plugs and r.

MIL-DTL-10544 Features

* of these field proven, 10-contact solutions include:
* Passivated stainless steel shells.
* Copper contacts are gold plated and rated for 3000 mate and demate cycles.
* Cable-mount products available in in-line and right-angle configurations.

📥 Download Datasheet

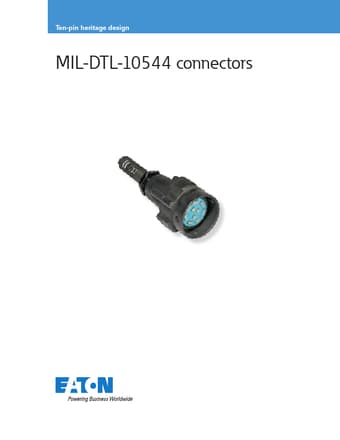

MIL-DTL-10544 Datasheet Preview — Preview of MIL-DTL-10544 PDF

Datasheet Details

Part number: MIL-DTL-10544
Manufacturer: EATON
File Size: 304.03 KB
Datasheet: MIL-DTL-10544-EATON.pdf
Description: connectors
