SMAJ220AH, SMAJ5.0AH - Automotive grade 400W Transient voltage suppressor

SMAJ220AH Description

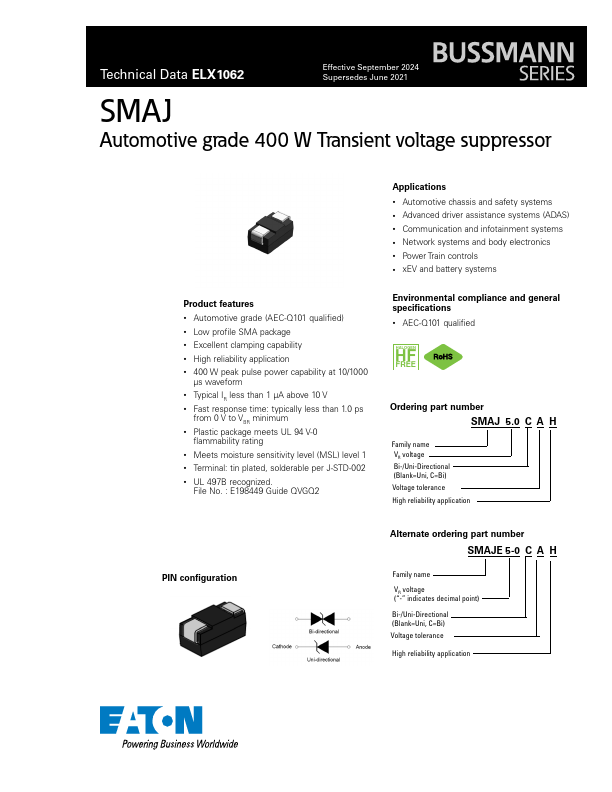

Technical Data ELX1062 Effective September 2024 Supersedes June 2021 SMAJ Automotive grade 400 W Transient voltage suppressor Applications .

SMAJ220AH Features

* Automotive grade (AEC-Q101 qualified)
* Low profile SMA package
* Excellent clamping capability

SMAJ220AH Applications

* Automotive chassis and safety systems
* Advanced driver assistance systems (ADAS)
* Communication and infotainment systems
* Network systems and body electronics
* Power Train controls

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMAJ220AH, SMAJ5.0AH. Please refer to the document for exact specifications by model.

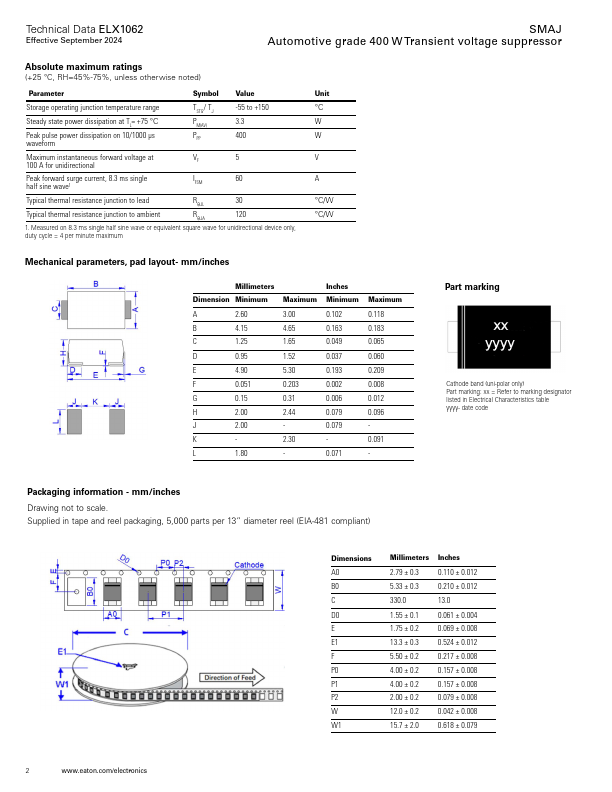

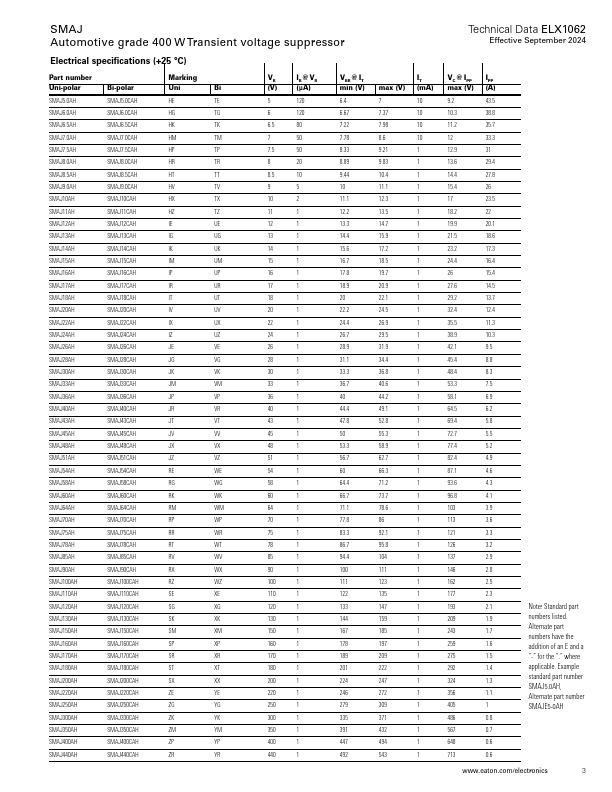

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMAJ220AH, SMAJ5.0AH
Manufacturer
EATON
File Size
496.91 KB
Datasheet
SMAJ5.0AH-EATON.pdf
Description
Automotive grade 400W Transient voltage suppressor
Note
This datasheet PDF includes multiple part numbers: SMAJ220AH, SMAJ5.0AH.
Please refer to the document for exact specifications by model.
