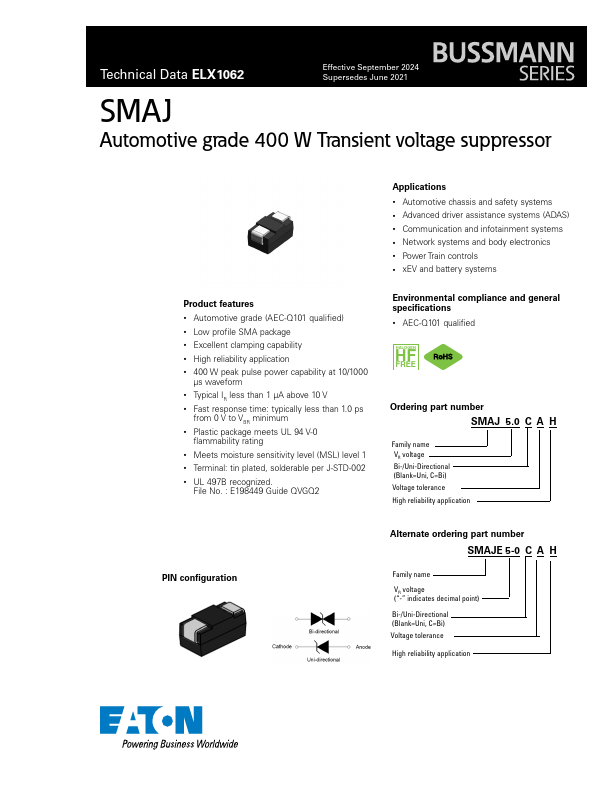

Technical Data ELX1062
Effective September 2024 Supersedes June 2021
SMAJ
Automotive grade 400 W Transient voltage suppressor
Applications • Automotive chassis and safety systems • Advanced driver assistance systems (ADAS) • Communication and infotainment systems • Network systems and body electronics • Power Train controls • xEV and battery systems
Product features
• Automotive grade (AEC-Q101 qualified)
• Low profile SMA package
• Excellent clamping capability
• High reliability application
• 400 W peak pulse power capability at 10/1000 μs waveform
• Typical IR less than 1 μA above 10 V • Fast response time: typically less than 1.
