Datasheet Details
Part number:
SMAJ78AH, SMAJ5.0AH
Manufacturer:
EATON
File Size:
496.91 KB
Description:

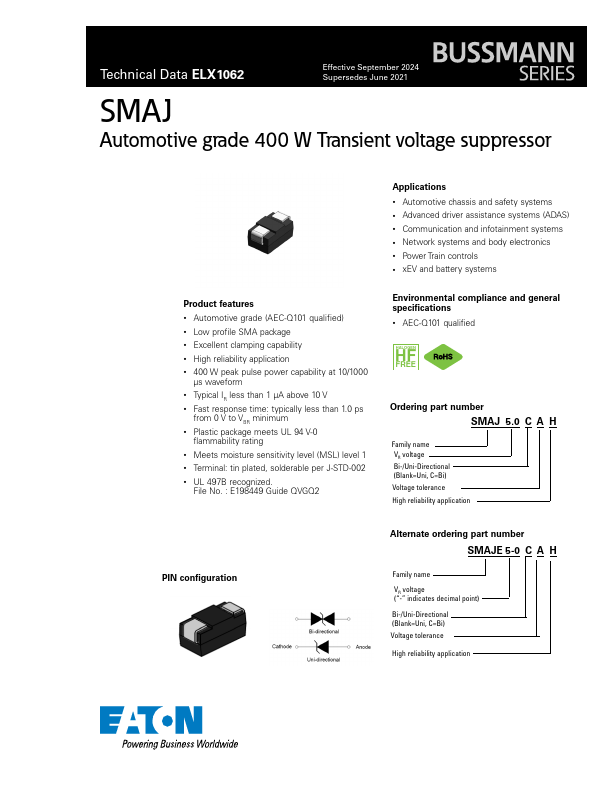

Automotive grade 400W Transient voltage suppressor
Note:
This datasheet PDF includes multiple part numbers: SMAJ78AH, SMAJ5.0AH.
Please refer to the document for exact specifications by model.
Features
* Automotive grade (AEC-Q101 qualified)
* Low profile SMA package
* Excellent clamping capability
* High reliability application
* 400 W peak pulse power capability at 10/1000 μs waveform
* Typical IR less than 1 μA above 10 V
* Fast response t
