VPH4-0047-R, VPH1-1400-R - Inductors and Transformers

EATON

Datasheet Details

Part number	VPH4-0047-R, VPH1-1400-R
Manufacturer	EATON
File Size	1.33 MB
Description	Inductors and Transformers
Datasheet	VPH1-1400-R-EATON.pdf
Note	This datasheet PDF includes multiple part numbers: VPH4-0047-R, VPH1-1400-R. Please refer to the document for exact specifications by model.

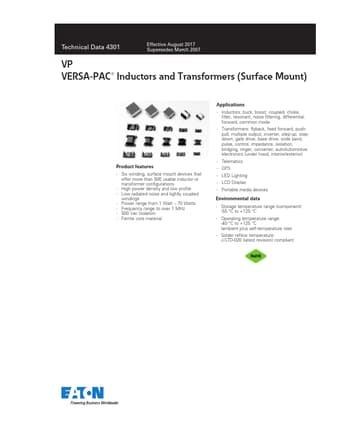

Six winding, surface mount devices that offer more than 500 usable inductor or transformer configurations.
High power density and low profile.
Low radiated noise and tightly coupled windings.
Power range from 1 Watt.
70 Watts.
Frequency range to over 1 MHz.
500 Vac Isolation.
Ferrite core material.
