VPH5-0067-R, VPH1-1400-R Datasheet - EATON

VPH5-0067-R Inductors and Transformers

VPH5-0067-R Features

* Six winding, surface mount devices that offer more than 500 usable inductor or transformer configurations

* High power density and low profile

* Low radiated noise and tightly coupled windings

* Power range from 1 Watt

* 70 Watts

* Frequency range to

VPH1-1400-R-EATON.pdf

This datasheet PDF includes multiple part numbers: VPH5-0067-R, VPH1-1400-R. Please refer to the document for exact specifications by model.

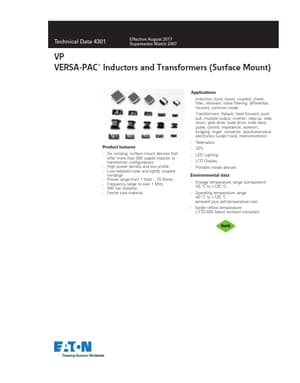

VPH5-0067-R Datasheet Preview Page 2 VPH5-0067-R Datasheet Preview Page 3

Datasheet Details

Part number:

VPH5-0067-R, VPH1-1400-R

Manufacturer:

EATON

File Size:

1.33 MB

Description:

Inductors and transformers.

Note:

This datasheet PDF includes multiple part numbers: VPH5-0067-R, VPH1-1400-R.
Please refer to the document for exact specifications by model.
