EH4600TS-8.192M Datasheet - ECLIPTEK

EH4600TS-8.192M Quartz Crystal Clock Oscillator

Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) 8.192MHz ±100ppm 0°C to +70°C ELECTRICAL SPECIFICATIONS Nominal Frequency 8.192MHz Frequency Tolerance/Stability ±100ppm Maximum (Inclusive of all conditions: Calibration Tolerance at.

EH4600TS-8.192M-ECLIPTEK.pdf

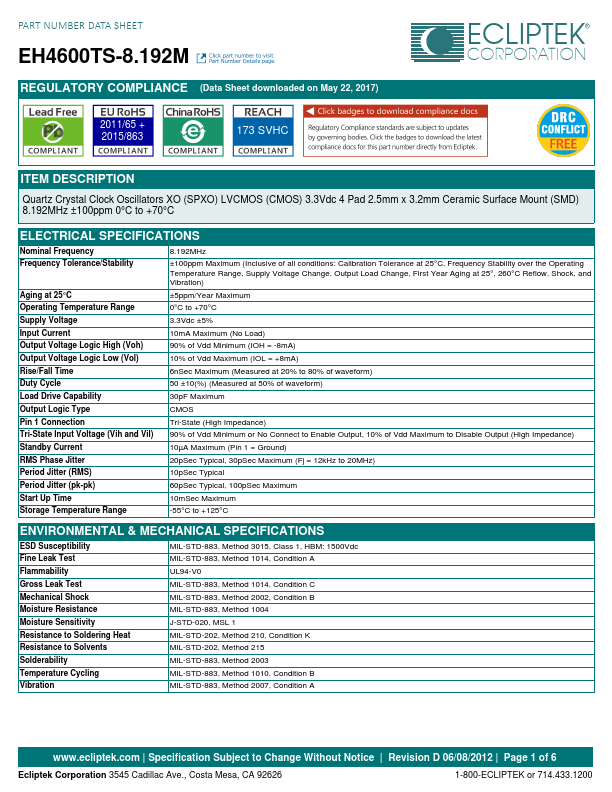

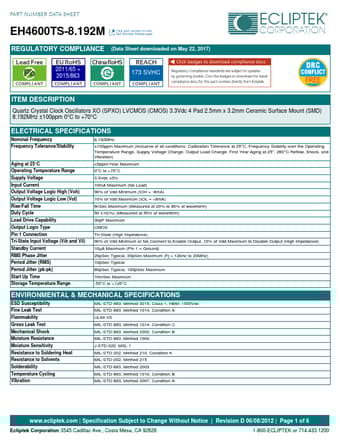

Preview of EH4600TS-8.192M PDF

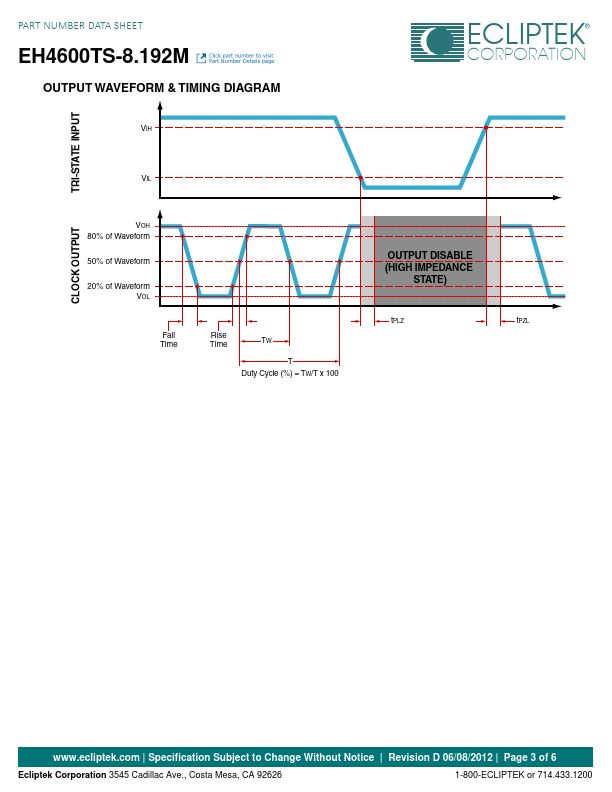

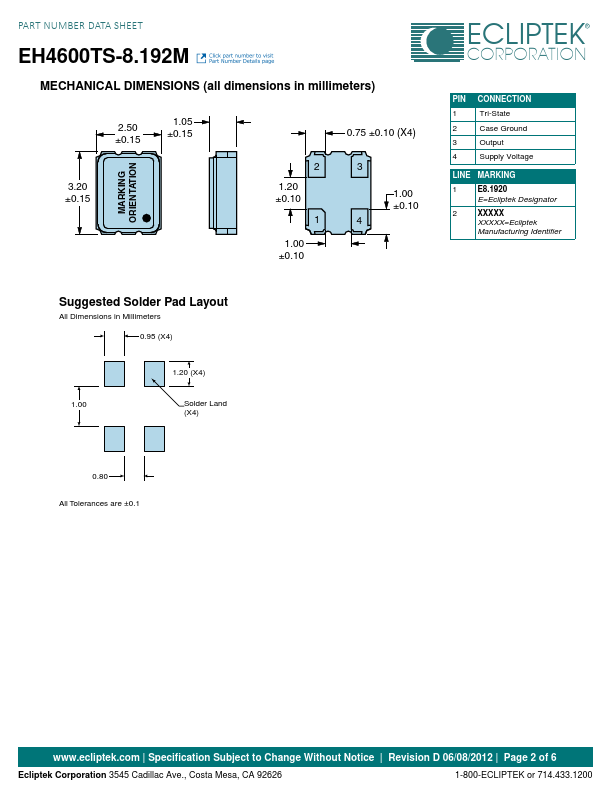

EH4600TS-8.192M Datasheet Preview Page 2 EH4600TS-8.192M Datasheet Preview Page 3

Datasheet Details

Part number:

EH4600TS-8.192M

Manufacturer:

ECLIPTEK

File Size:

415.61 KB

Description:

Quartz crystal clock oscillator.
