The ZTA Series ceramic resonator offers a wide frequency range and extended temperature range capabilities.
ZTA Series
Ceramic Resonator
Request a Sample
ZTA Series
• Low Profile • Wide Frequency Range • Extended temperature
range • RoHS Compliant (Note 7
Exemption)
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
Part Number *
ZTA□.□□MG ZTA□.□□MG ZTA□.□□MG ZTA□.□□MT ZTA□□.□□MT ZTA□□.□□MX
Frequency Range (MHz)
2.00 ~ 2.99 3.00 ~ 3.49 3.50 ~ 8.00 6.01 ~ 6.99 7.00 ~ 13.00 13.01 ~ 50.00
Frequency Accuracy @25⁰C (%)
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
• Withstanding voltage (5 seconds max.) : 100V DC • Insulation Resistance 100M Ω Min. (at 10V DC)
Stability in Temperature -20 ~ +80⁰C (%)
±0.3
Aging for Ten
Years (%)
Resonant Resistance
(Ω) MAX
±0.3
80
±0.3
±0.3
50
±0.3
±0.

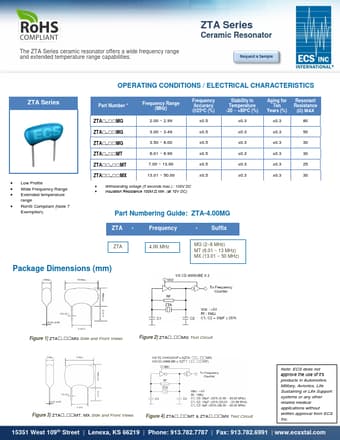

ZTA Datasheet
