2CL2J Datasheet - EDI

2CL2J HIGH VOLTAGE MEDIUM CURRENT SILICON RECTIFIER DIODES

2CL2 HIGH VOLTAGE, MEDIUM CURRENT SILICON RECTIFIER DIODES EDI TYPE # PRV VOLTS Forward Voltage Drop @ 100mA 2CL2F 8,000 10V STANDARD RECOVERY 2CL2G 2CL2H 2CL2J 10,000 12,000 15,000 12V 13V 16V 2CL2FF 8,000 16V FAST RECOVERY 2CL2FG 2CL2FH 10,000 12,000 18V 20V 2CL2FJ 15,000 24V ULTRA FAST RECOVERY 2CL2FK 2CL2FL 2CL2FM 10,000 15,000 20,000 22V 26V 35V ELECTRICAL CHARACTERISTIC (at TAir = 25°C Unless Otherwise Specified) Average Maximum Forward Current IF Max @ T Air = 40ºC Average Maximum.

2CL2J Datasheet (36.52 KB)

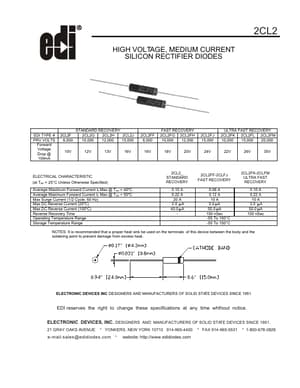

Preview of 2CL2J PDF

Datasheet Details

Part number:

2CL2J

Manufacturer:

EDI

File Size:

36.52 KB

Description:

High voltage medium current silicon rectifier diodes.
