SZ1510 Surface Mount Silicon Zener Diodes

SZ1510 Description

SZ153D - SZ15D0 VZ : 3.3 - 200 Volts PD : 1 Watt .

SZ1510 Features

* :
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current SURFACE MOUNT SILICON ZENER DIODES SMA (DO-214AC) 5.0 ± 0.15 4.5 ± 0.15 1.1 ± 0.3 1.2 ± 0.2 2.6 ± 0.15 2.1 ± 0.2 0.2 ± 0.07 MECHANICAL DATA
* Case : S

📥 Download Datasheet

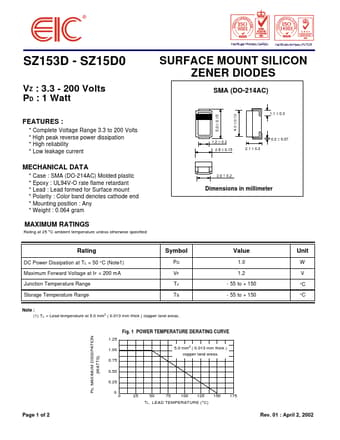

Preview of SZ1510 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SZ1510
Manufacturer
EIC Semiconductor
File Size
27.46 KB
Datasheet
SZ1510_EICSemiconductor.pdf
Description
Surface Mount Silicon Zener Diodes
