1N4472, 1N4465, (1N4460 - 1N4496) SILICON ZENER DIODES

Certificate TH97/10561QM Certificate TW00/17276EM 1N4460 - 1N4496 and 1N6485 - 1N6491 VZ : 3.3 - 200 Volts PD : 1.5 Watts .

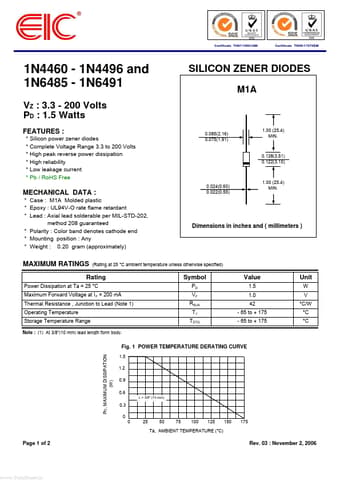

datasheet Preview Page 1 from Datasheet4u.com

1N4465_EICdiscreteSemiconductors.pdf

1N4472 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4472, 1N4465. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N4472, 1N4465

Manufacturer:

EIC discrete Semiconductors

File Size:

122.12 KB

Description:

(1N4460 - 1N4496) SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: 1N4472, 1N4465.
Please refer to the document for exact specifications by model.

Features

* :
* Silicon power zener diodes
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb / RoHS Free SILICON ZENER DIODES M1A 0.085(2.16) 0.075(1.91) 1.00 (25.4) MIN. 0.138(3.51) 0.122(3.10) MECHANICAL D
