AKBL401 - AVALANCHE BRIDGE RECTIFIERS

Datasheet Summary

Features

  • :.
  • High case dielectric strength High surge current capability High reliability Low reverse current Low forward voltage drop ldeal for printed circuit board.

📥 Download Datasheet

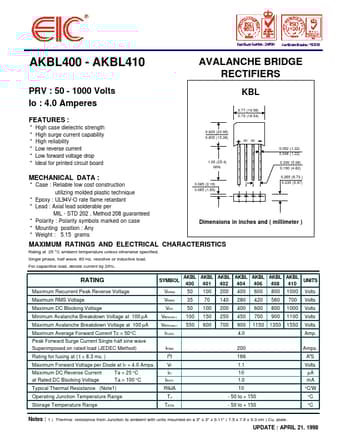

Datasheet preview – AKBL401

Datasheet Details

Part number AKBL401
Manufacturer EIC discrete Semiconductors
File Size 19.79 KB
Description AVALANCHE BRIDGE RECTIFIERS
Datasheet download datasheet AKBL401 Datasheet
Additional preview pages of the AKBL401 datasheet.

📁 Similar Datasheet

  • AKBPC3502 - 35 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC3503 - 35 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC3504 - 35 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC3505 - 35 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC3506 - 35 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC3507 - 35 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC3508 - 35 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC602 - 6 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC603 - 6 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
  • AKBPC604 - 6 AMP CONTROLLED AVALANCHE SILICON BRIDGE RECTIFIER (Fuji Electric)
Other Datasheets by EIC discrete Semiconductors
  • AKBL400 - AVALANCHE BRIDGE RECTIFIERS
  • AKBL402 - AVALANCHE BRIDGE RECTIFIERS
  • AKBL404 - AVALANCHE BRIDGE RECTIFIERS
  • AKBL406 - AVALANCHE BRIDGE RECTIFIERS
  • AKBL408 - AVALANCHE BRIDGE RECTIFIERS
  • AKBL410 - AVALANCHE BRIDGE RECTIFIERS
  • AKBP200 - AVALANCHE BRIDGE RECTIFIERS
  • AKBP201 - AVALANCHE BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text
AKBL400 - AKBL410 PRV : 50 - 1000 Volts Io : 4.0 Amperes FEATURES : * * * * * * High case dielectric strength High surge current capability High reliability Low reverse current Low forward voltage drop ldeal for printed circuit board AVALANCHE BRIDGE RECTIFIERS KBL 0.77 (19.56) 0.73 (18.54) 0.825 (20.95) 0.605 (15.36) + AC AC 0.052 (1.32) 0.048 (1.22) 1.00 (25.4) MIN. 0.200 (5.08) 0.190 (4.82) 0.265 (6.73 ) 0.235 (5.97) MECHANICAL DATA : * Case : Reliable low cost construction utilizing molded plastic technique * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL - STD 202 , Method 208 guaranteed * Polarity : Polarity symbols marked on case * Mounting position : Any * Weight : 5.15 grams Rating at 25 °C ambient temperature unless otherwise specified.
