BZW04P102 Datasheet - EIC discrete Semiconductors

BZW04P102, TRANSIENT VOLTAGE SUPPRESSOR

BZW04 SERIES VBR : 6.8 - 440 Volts PPK : 400 Watts .

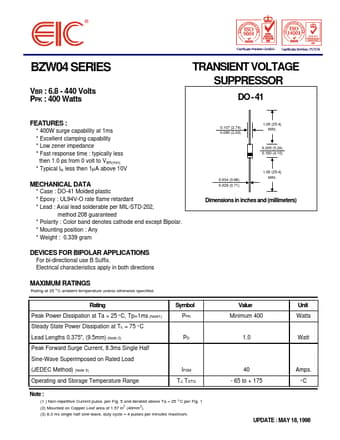

datasheet Preview Page 1 from Datasheet4u.com

BZW04P102_EICdiscreteSemiconductors.pdf

BZW04P102 Datasheet Preview — Preview of BZW04P102 PDF

Datasheet Details

Part number:

BZW04P102

Manufacturer:

EIC discrete Semiconductors

File Size:

51.54 KB

Description:

TRANSIENT VOLTAGE SUPPRESSOR

Features

* :
* 400W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min)
* Typical IR less then 1µA above 10V TRANSIENT VOLTAGE SUPPRESSOR DO - 41 1.00 (25.4) MIN. 0.107 (2.74) 0.080 (2.03)

Applications

* For bi-directional use B Suffix. Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 ° C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 ° C, Tp=1ms (Note1) Steady State Power Dissipation at TL = 75 ° C Lead Lengths 0.375", (9.5
