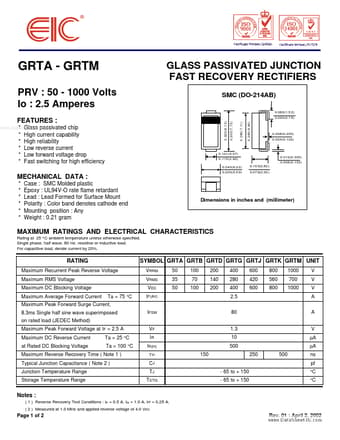

GRTA - GRTM
PRV : 50 - 1000 Volts Io : 2.5 Amperes
FEATURES :
www.DataSheet4U.com * Glass passivated
GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIERS
SMC (DO-214AB)
0.060(1.5 2) 0.030(0.7 6)
0.320(8.13)
0.305(7.75)
0.280(7.11)
* * * * *
chip High current capability High reliability Low reverse current Low forward voltage drop Fast switching for high efficiency
0.260(6.60)
0.008(0.203) 0.004(0.102)
0.121(3.07) 0.115(2.92) 0.245(6.2 2) 0.10 3(2.62 ) 0.07 9(2.00 ) 0.012(0.305) 0.006(0.152) 0.220(5.5 9)
MECHANICAL DATA :
* * * * * * Case : SMC Molded plastic Epoxy : UL94V-O rate flame retardant Lead : Lead Formed for Surface Mount Polarity : Color band denotes cathode end Mounting position : Any Weight : 0.
