MR2500 - AUTOMOTIVE RECTIFIER DIODES

MR2500 Description

MR2500 - MR2512 PRV : 50 - 1200 Volts Io : 25 Amperes .

MR2500 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Terminals : Terminal are readily sol

📥 Download Datasheet

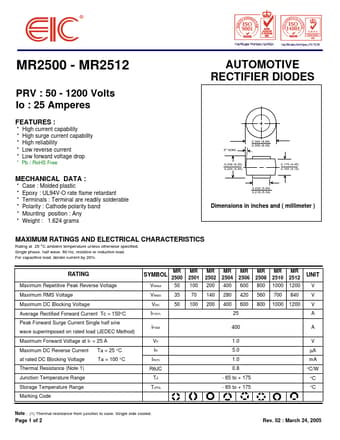

Preview of MR2500 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MR2500
Manufacturer
EIC discrete Semiconductors
File Size
67.20 KB
Datasheet
MR2500_EICdiscreteSemiconductors.pdf
Description
AUTOMOTIVE RECTIFIER DIODES
