SZ103D, SZ10xx SURFACE MOUNT SILICON ZENER DIODES

EIC discrete Semiconductors

Description

SZ103D - SZ10D0 VZ : 3.3 - 200 Volts PD : 1 Watt .

📥 Download Datasheet

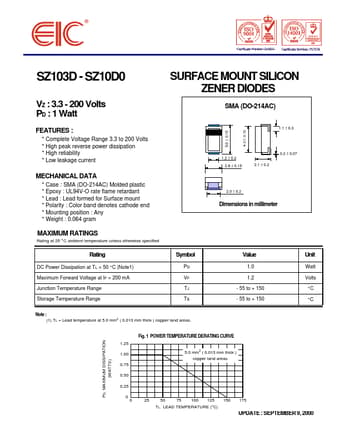

SZ103D Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ103D, SZ10xx. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SZ103D, SZ10xx
Manufacturer: EIC discrete Semiconductors
File Size: 28.42 KB
Datasheet: SZ10xx_EICdiscreteSemiconductors.pdf
Description: SURFACE MOUNT SILICON ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: SZ103D, SZ10xx.
Please refer to the document for exact specifications by model.

Features

* :
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current SURFACE MOUNT SILICON ZENER DIODES SMA (DO-214AC) 1.1 ± 0.3 5.0 ± 0.15 4.5 ± 0.15 1.2 ± 0.2 2.6 ± 0.15 2.1 ± 0.2 0.2 ± 0.07 MECHANICAL DATA
* Case : SM
