15KP85C, 15KP12 - TRANSIENT VOLTAGE SUPPRESSORS

Name: 15KP85C
SKU: 15KP85C-1344062

EIC

The 15KP85C by EIC is a TRANSIENT VOLTAGE SUPPRESSORS. Below is the official datasheet preview.

Datasheet Details

Part number	15KP85C, 15KP12
Manufacturer	EIC
File Size	630.58 KB
Description	TRANSIENT VOLTAGE SUPPRESSORS
Datasheet	15KP12-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: 15KP85C, 15KP12. Please refer to the document for exact specifications by model.

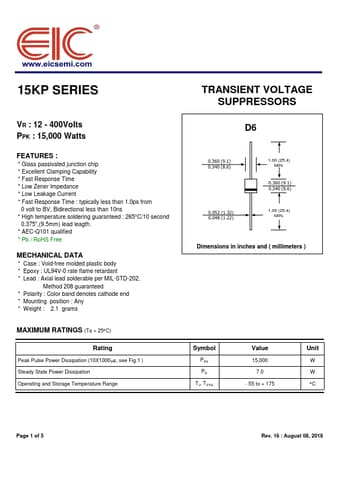

Additional preview pages of the 15KP85C datasheet.

:.
Glass passivated junction chip.
Excellent Clamping Capability.
Fast Response Time.
Low Zener Impedance.
Low Leakage Current.
Fast Response Time : typically less than 1.0ps from 0 volt to BV, Bidirectional less than 10ns.
High temperature soldering guaranteed : 265°C/10 second 0.375",(9.5mm) lead leagth.
AEC-Q101 qualified.
Pb / RoHS Free.
