1N4749A, 1N4728A SILICON ZENER DIODES

1N4749A Description

Certificate TH97/10561QM Certificate TW00/17276EM 1N4728A - 1N4764A Z1110A - Z1200A VZ : 3.3 - 200 Volts PD : 1 Watt SILICON ZENER DIODES DO - 41 .

1N4749A Features

* :
* Complete voltage range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb / RoHS Free 0.108 (2.74) 0.078 (1.99) 1.00 (25.4) MIN. 0.205 (5.20) 0.161 (4.10) MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epoxy : UL94

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4749A, 1N4728A. Please refer to the document for exact specifications by model.

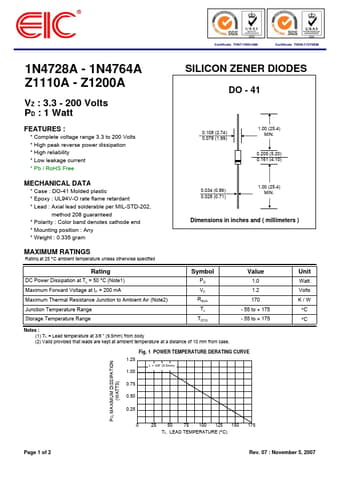

datasheet Preview Page 2

Datasheet Details

Part number
1N4749A, 1N4728A
Manufacturer
EIC
File Size
85.68 KB
Datasheet
1N4728A-EIC.pdf
Description
SILICON ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N4749A, 1N4728A.
Please refer to the document for exact specifications by model.
