1SMB5950A - SILICON ZENER DIODE

This page provides the datasheet information for the 1SMB5950A, a member of the 1SMB5913A SILICON ZENER DIODE family.

Datasheet Summary

Features

  • :.
  • Complete Voltage Range 3.3 to 200 Volts.
  • High peak reverse power dissipation.
  • Flat handling surface for accurate placement.
  • Low leakage current.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – 1SMB5950A

Datasheet Details

Part number 1SMB5950A
Manufacturer EIC
File Size 185.27 KB
Description SILICON ZENER DIODE
Datasheet download datasheet 1SMB5950A Datasheet
Additional preview pages of the 1SMB5950A datasheet.

📁 Similar Datasheet

  • 1SMB5950A - SILICON ZENER DIODES (Bruckewell)
  • 1SMB5950A - Silicon Zener Diodes (LGE)
  • 1SMB5950A - 3W SURFACE MOUNTSILICON ZENER DIODES (STAR SEA)
  • 1SMB5950 - SURFACE MOUNT SILICON ZENER DIODE(VOLTAGE - 11 TO 200 Volts Power - 1.5 Watts) (Pan Jit International Inc.)
  • 1SMB5950 - 3.0W Surface Mount Silicon Zener Diode (LGE)
  • 1SMB5950 - Surface Mount Silicon Zener Diodes (Taiwan Semiconductor)
  • 1SMB5950B - SILICON ZENER DIODE (Synsemi)
  • 1SMB5950B - Surface Mount Silicon Zener Diodes (SEMTECH)
  • 1SMB5950B - 3.0W SURFACE MOUNT ZENER DIODE (WON-TOP)
  • 1SMB5950B - Surface Mount Zener Diodes (JGD)
Other Datasheets by EIC

Full PDF Text Transcription

Click to expand full text

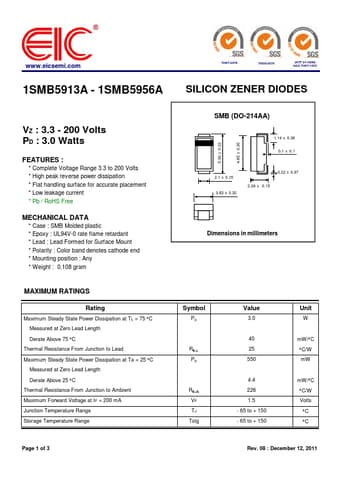

www.eicsemi.com 1SMB5913A - 1SMB5956A TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 SILICON ZENER DIODES VZ : 3.3 - 200 Volts PD : 3.0 Watts FEATURES : * Complete Voltage Range 3.3 to 200 Volts * High peak reverse power dissipation * Flat handling surface for accurate placement * Low leakage current * Pb / RoHS Free MECHANICAL DATA * Case : SMB Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Lead Formed for Surface Mount * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.108 gram SMB (DO-214AA) 5.30 ± 0.22 4.65 ± 0.30 1.14 ± 0.38 0.1 ± 0.1 2.1 ± 0.15 3.62 ± 0.32 0.22 ± 0.07 2.28 ± 0.
