* 1500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min.)
* Typical IR less then 1μA above 10V
* Pb / RoHS Free MECHANICAL DATA
* Case : SMC Molded plastic
* Epox
1SMC22A
EIC
128.80 KB

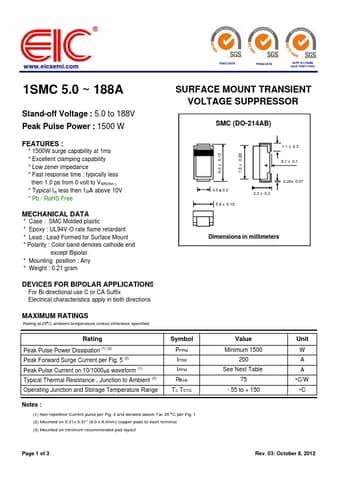

Surface mount transient voltage suppressor.
www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 1SMC 5.0 ~ 188A Stand-off Voltage : 5.0 to 188V Peak Pulse Power : 1500 W SURFACE .
