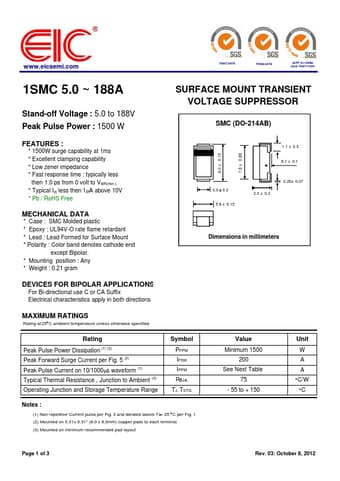

1SMC85A Datasheet, Suppressor, EIC

1SMC85A Features

• Suppressor :
• 1500W surge capability at 1ms
• Excellent clamping capability
• Low zener impedance
• Fast response time : typically less then 1.0 ps from 0 volt to

PDF File Details

Part number:

1SMC85A

Manufacturer:

EIC

File Size:

128.80kb

Download:

📄 Datasheet

Description:

Surface mount transient voltage suppressor.

1SMC85A Application

• Applications For Bi-directional use C or CA Suffix Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25°C ambient tempe
