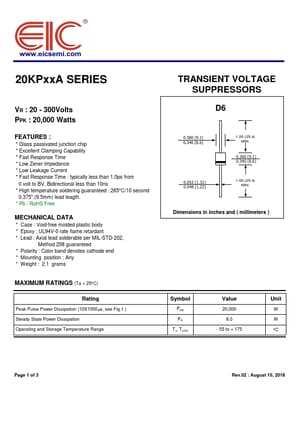

20KP104A, 20KP20A - TRANSIENT VOLTAGE SUPPRESSORS

EIC

Datasheet Details

Part number	20KP104A, 20KP20A
Manufacturer	EIC
File Size	574.03 KB
Description	TRANSIENT VOLTAGE SUPPRESSORS
Datasheet	20KP20A-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP104A, 20KP20A. Please refer to the document for exact specifications by model.

:.
Glass passivated junction chip.
Excellent Clamping Capability.
Fast Response Time.
Low Zener Impedance.
Low Leakage Current.
Fast Response Time : typically less than 1.0ps from 0 volt to BV, Bidirectional less than 10ns.
High temperature soldering guaranteed : 265°C/10 second 0.375",(9.5mm) lead leagth.
Pb / RoHS Free.
