3KE100CA, 3KE13C, BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

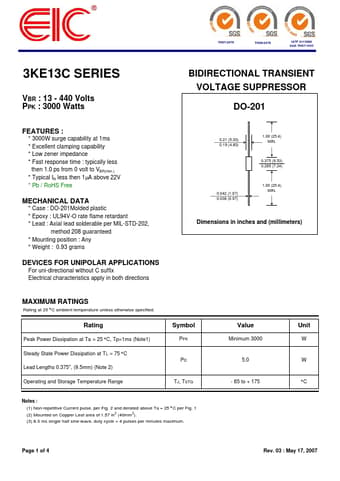

TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 3KE13C SERIES VBR : 13 - 440 Volts PPK : 3000 Watts BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR DO-2.

3KE13C-EIC.pdf

3KE100CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 3KE100CA, 3KE13C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3KE100CA, 3KE13C

Manufacturer:

EIC

File Size:

53.03 KB

Description:

BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: 3KE100CA, 3KE13C.
Please refer to the document for exact specifications by model.

Features

* :
* 3000W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1μA above 22V
* Pb / RoHS Free MECHANICAL DATA
* Case : DO-201Molded plastic
* Epo

Applications

* For uni-directional without C suffix Electrical characteristics apply in both directions 0.21 (5.33) 0.19 (4.83) 0.042 (1.07) 0.038 (0.97) 1.00 (25.4) MIN. 0.375 (9.53) 0.285 (7.24) 1.00 (25.4) MIN. Dimensions in inches and (millimeters) MAXIMUM RATINGS Rating at 25 °C ambient temperature unless
