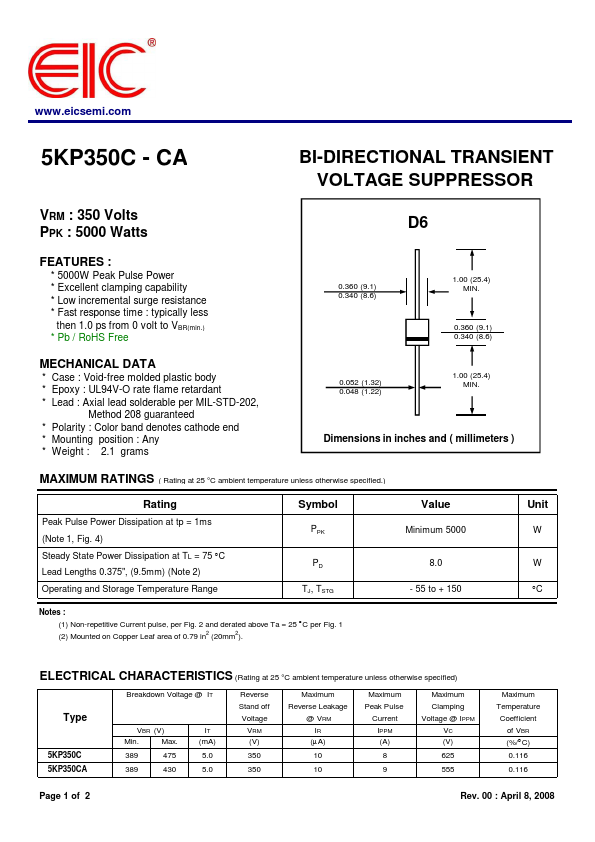

5KP350CA, 5KP350C BI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

5KP350CA Description

www.eicsemi.com 5KP350C - CA BI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR VRM : 350 Volts D6 PPK : 5000 Watts .

5KP350CA Features

* :
* 5000W Peak Pulse Power
* Excellent clamping capability
* Low incremental surge resistance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Pb / RoHS Free 0.360 (9.1) 0.340 (8.6) 1.00 (25.4) MIN. 0.360 (9.1) 0.340 (8.6) MECHANICAL DATA
* Case

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 5KP350CA, 5KP350C. Please refer to the document for exact specifications by model.

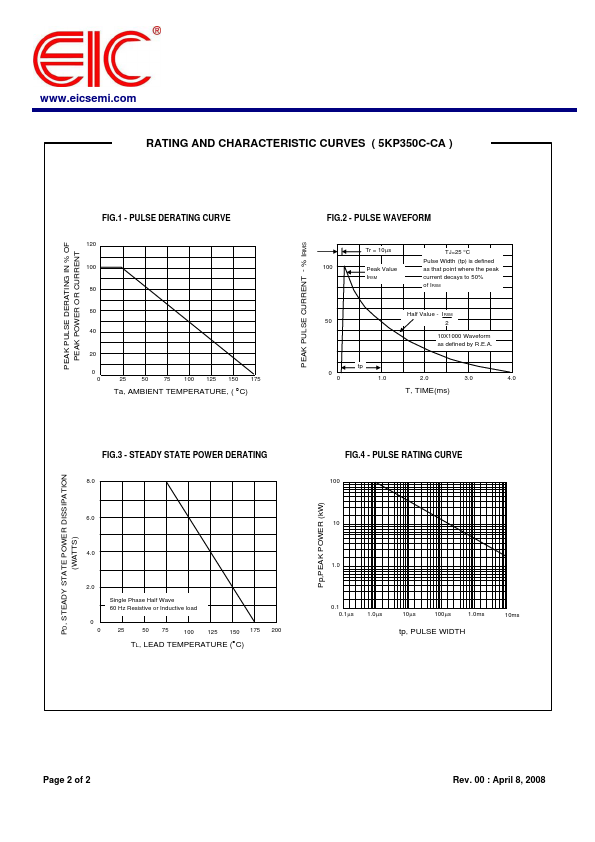

datasheet Preview Page 2

Datasheet Details

Part number
5KP350CA, 5KP350C
Manufacturer
EIC
File Size
40.86 KB
Datasheet
5KP350C-EIC.pdf
Description
BI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: 5KP350CA, 5KP350C.
Please refer to the document for exact specifications by model.
