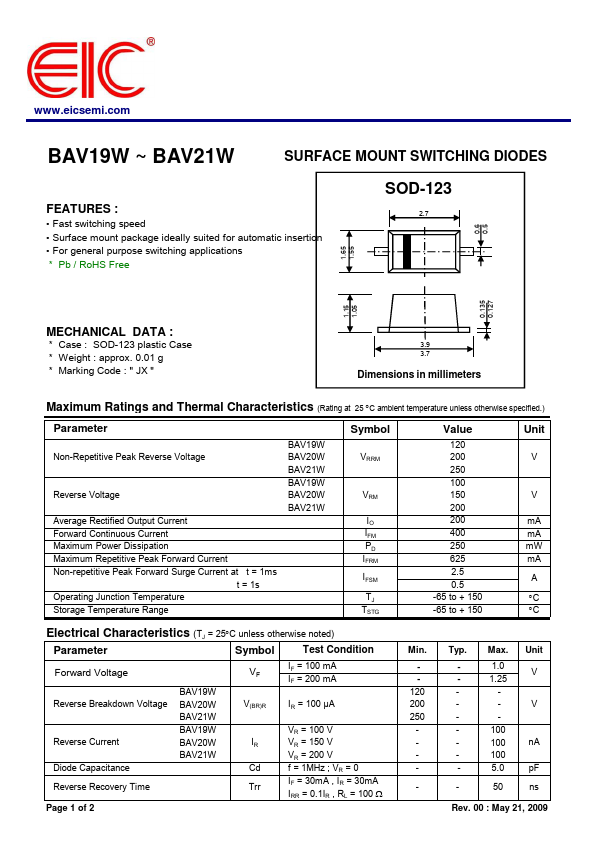

BAV19W
FEATURES
:
- Fast switching speed
- Surface mount package ideally suited for automatic insertion
- For general purpose switching applications
- Pb / Ro HS Free
SOD-123
MECHANICAL DATA :
- Case : SOD-123 plastic Case
- Weight : approx. 0.01 g
- Marking Code : " JX "
3.9 3.7
Dimensions in millimeters
Maximum Ratings and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified.)
Parameter
Non-Repetitive Peak Reverse Voltage
Reverse Voltage
Average Rectified Output Current Forward Continuous Current Maximum Power Dissipation Maximum Repetitive Peak Forward Current Non-repetitive Peak Forward Surge Current at t = 1ms t = 1s Operating Junction Temperature Storage Temperature Range
BAV19W BAV20W BAV21W BAV19W BAV20W BAV21W
Symbol
VRRM
IO IFM PD IFRM IFSM TJ TSTG
Value
120 200 250 100 150 200 200 400 250 625 2.5 0.5 -65 to + 150 -65 to + 150
Unit
V m A m A m W m A A °C °C
Electrical Characteristics (TJ = 25°C...
