BR2500W - SILICON BRIDGE RECTIFIERS

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • High case dielectric strength.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – BR2500W

Datasheet Details

Part number BR2500W
Manufacturer EIC
File Size 147.07 KB
Description SILICON BRIDGE RECTIFIERS
Datasheet download datasheet BR2500W Datasheet
Additional preview pages of the BR2500W datasheet.

📁 Similar Datasheet

  • BR2500 - Bridge Rectifier (Formosa MS)
  • BR25005 - (BR25005 - BR2510) Silicon Bridge Rectifiers (Luguang Electronic)
  • BR25005 - Silicon Bridge Rectifiers (Galaxy Microelectronics)
  • BR25005 - Silicon Bridge Rectifiers (CumSumI)
  • BR25005 - Single Phase 25 AMPS.Silicon Bridge Rectifiers (Suntan)
  • BR25005 - Silicon Bridge Rectifiers (SeCoS)
  • BR25005-G - Silicon Bridge Rectifiers (Comchip)
  • BR25005L - Bridge Rectifiers (Yangjie)
  • BR25005W - (BR25005W - BR2510W) Silicon Bridge Rectifiers (Luguang Electronic)
  • BR2501 - Bridge Rectifier (Formosa MS)
Other Datasheets by EIC
  • BR2500 - SILICON BRIDGE RECTIFIERS
  • BR2500M - (BR2500M - BR2510M) SILICON BRIDGE RECTIFIERS
  • BR2501 - SILICON BRIDGE RECTIFIERS
  • BR2501M - (BR2500M - BR2510M) SILICON BRIDGE RECTIFIERS
  • BR2501W - SILICON BRIDGE RECTIFIERS
  • BR2502 - SILICON BRIDGE RECTIFIERS
  • BR2502M - (BR2500M - BR2510M) SILICON BRIDGE RECTIFIERS
  • BR2502W - SILICON BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

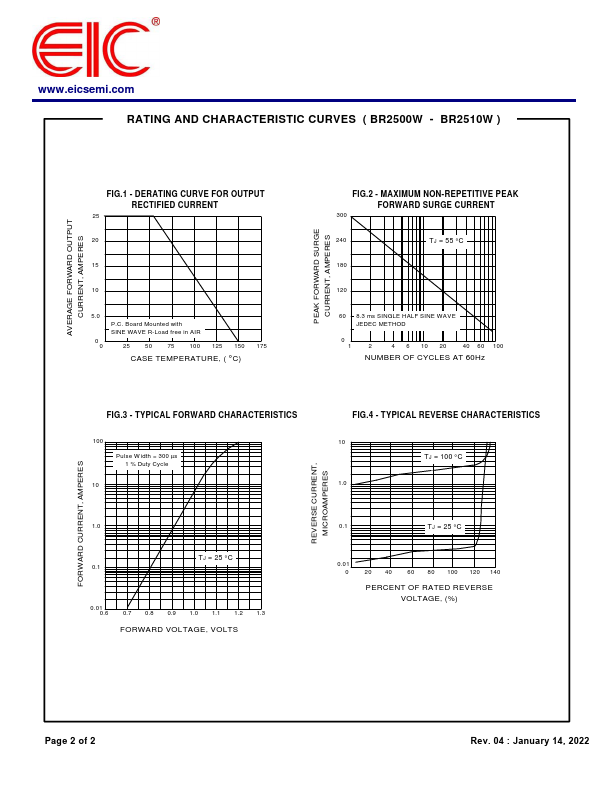

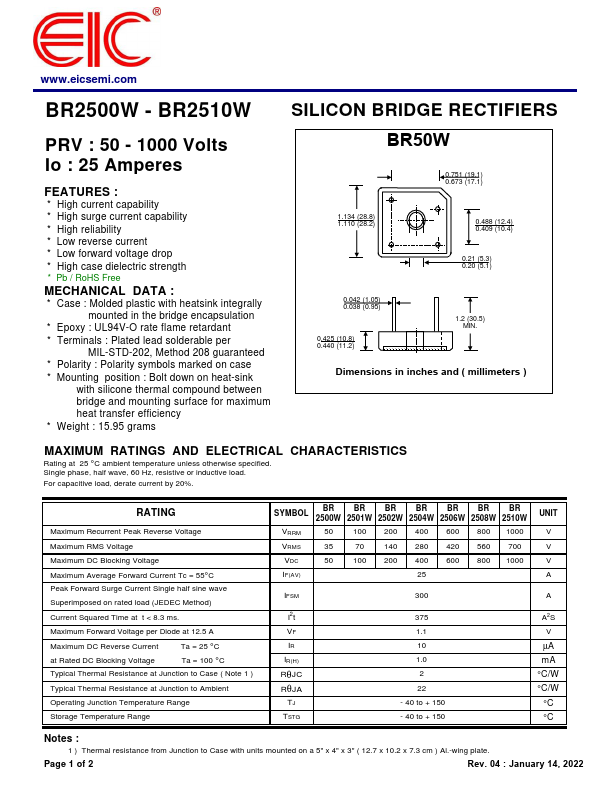

www.eicsemi.com BR2500W - BR2510W SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 25 Amperes FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * High case dielectric strength * Pb / RoHS Free MECHANICAL DATA : * Case : Molded plastic with heatsink integrally mounted in the bridge encapsulation * Epoxy : UL94V-O rate flame retardant * Terminals : Plated lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Polarity symbols marked on case * Mounting position : Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency * Weight : 15.95 grams BR50W 0.751 (19.1) 0.673 (17.1) 1.134 (28.8) 1.110 (28.2) 0.488 (12.4) 0.
