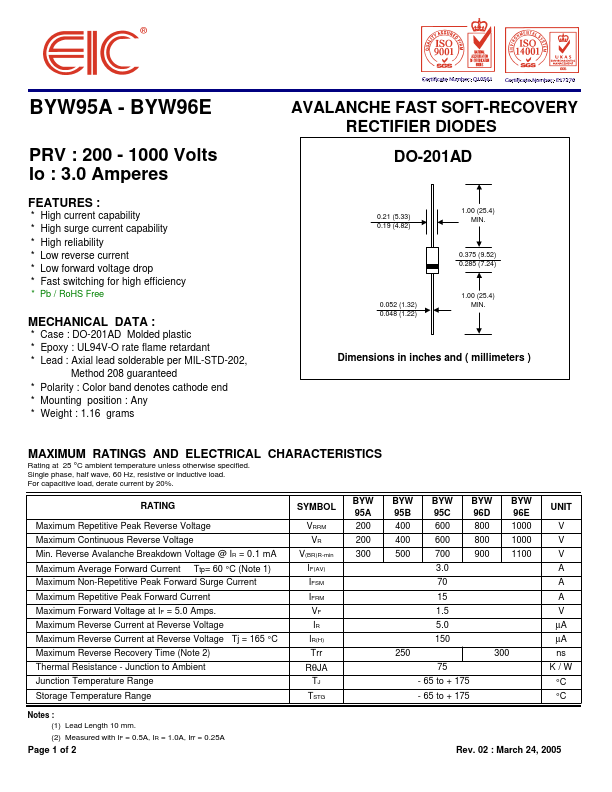

BYW95B, BYW95A AVALANCHE FAST SOFT-RECOVERY RECTIFIER DIODES

BYW95A - BYW96E PRV : 200 - 1000 Volts Io : 3.0 Amperes .

BYW95A-EIC.pdf

BYW95B Datasheet Preview — This datasheet PDF includes multiple part numbers: BYW95B, BYW95A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BYW95B, BYW95A

Manufacturer:

EIC

File Size:

39.36 KB

Description:

AVALANCHE FAST SOFT-RECOVERY RECTIFIER DIODES

Note:

This datasheet PDF includes multiple part numbers: BYW95B, BYW95A.
Please refer to the document for exact specifications by model.

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-201AD Molded plastic
* Epoxy : UL94V-O rate flame re
