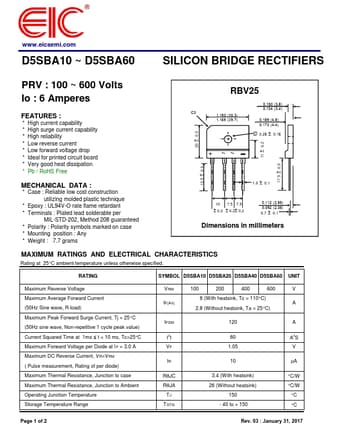

D5SBA40
FEATURES
:
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Ideal for printed circuit board
- Very good heat dissipation
- Pb / Ro HS Free
MECHANICAL DATA :
- Case : Reliable low cost construction utilizing molded plastic technique
- Epoxy : UL94V-O rate flame retardant
- Terminals : Plated lead solderable per
MIL-STD-202, Method 208 guaranteed
- Polarity : Polarity symbols marked on case
- Mounting position : Any
- Weight : 7.7 grams
RBV25
C3
1.193 (30.3)
1.169 (29.7)
0.150 (3.8) 0.134 (3.4)
0.189 (4.8) 0.173 (4.4)
∅ 3.25 ± 0.15
20 ± 0.3
+ ~~
11 ± 0.2 17.5 ± 0.5
13.5 ± 0.3
1.0 ± 0.1
10 7.5 7.5
±0.2 ±0.2±0.2
0.112 (2.85) 0.092 (2.35)
0.7 ± 0.1
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25°C ambient temperature unless otherwise specified.
RATING
SYMBOL D5SBA10 D5SBA20 D5SBA40 D5SBA60 UNIT
Maximum Reverse Voltage Maximum Average Forward Current (50Hz...
