DB01M SILICON BRIDGE RECTIFIER

EIC

DB01M Description

www.eicsemi.com DB01M SILICON BRIDGE RECTIFIER PRV : 100 Volts Io : 1.0 Ampere .

DB01M Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant

📥 Download Datasheet

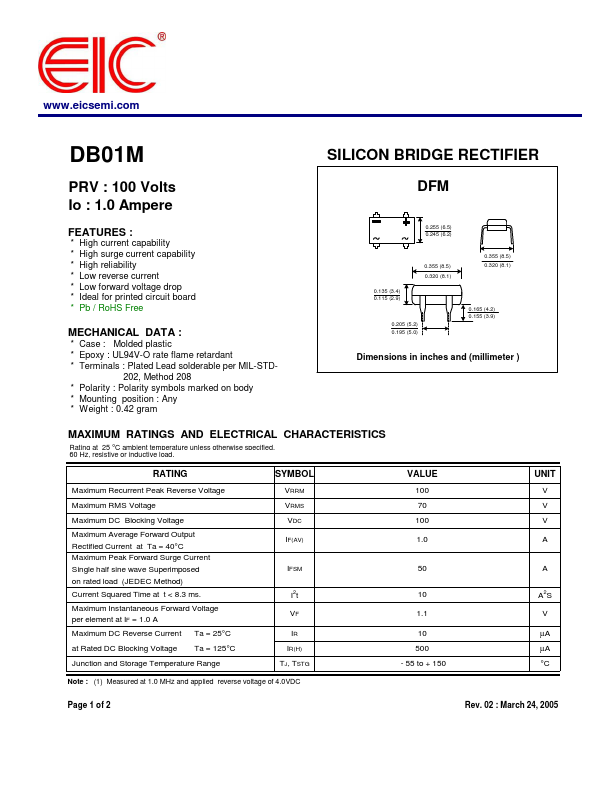

DB01M Datasheet Preview — Preview of DB01M PDF

Datasheet Details

Part number: DB01M
Manufacturer: EIC
File Size: 30.26 KB
Datasheet: DB01M-EIC.pdf
Description: SILICON BRIDGE RECTIFIER
