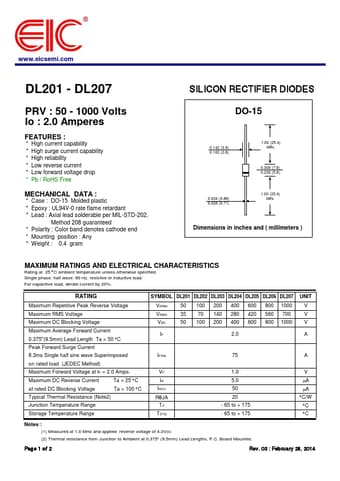

DL207, DL201 Datasheet - EIC

DL207, DL201, SILICON RECTIFIER DIODES

www.eicsemi.com DL201 - DL207 PRV : 50 - 1000 Volts Io : 2.0 Amperes .

datasheet Preview Page 1 from Datasheet4u.com

DL201-EIC.pdf

DL207 Datasheet Preview — This datasheet PDF includes multiple part numbers: DL207, DL201. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DL207, DL201

Manufacturer:

EIC

File Size:

37.56 KB

Description:

SILICON RECTIFIER DIODES

Note:

This datasheet PDF includes multiple part numbers: DL207, DL201.
Please refer to the document for exact specifications by model.

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-15 Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Lead : Axial lead solderable p
