EGP20D - HIGH EFFICIENT RECTIFIERS

This page provides the datasheet information for the EGP20D, a member of the EGP20A HIGH EFFICIENT RECTIFIERS family.

Features

  • :.
  • High current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Fast switching for high efficiency.
  • Pb / RoHS Free 0.142 (3.6) 0.102 (2.6) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8).

📥 Download Datasheet

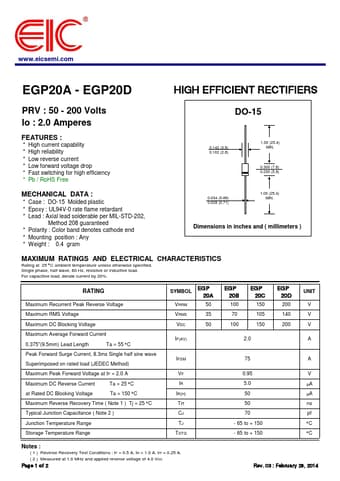

Datasheet preview – EGP20D

Datasheet Details

Part number EGP20D
Manufacturer EIC
File Size 80.32 KB
Description HIGH EFFICIENT RECTIFIERS
Datasheet download datasheet EGP20D Datasheet
Additional preview pages of the EGP20D datasheet.

📁 Similar Datasheet

  • EGP20D - SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGP20D - GLASS PASSIVATED FAST EFFICIENT RECTIFIER (General)
  • EGP20D - 2.0Amp Glass Passivated High Efficient Rectifiers (MCC)
  • EGP20D - Glass Passivated Ultrafast Plastic Rectifier (Vishay)
  • EGP20D - 2.0A Rectifiers (ON Semiconductor)
  • EGP20D - 2 Amp. Glass Passivated Avalanche Ultrafast Recovery Rectifier (FAGOR)
  • EGP20D - 2.0A Glass-Passivated High-Efficiency Rectifiers (Fairchild Semiconductor)
  • EGP20D - Glass Passivated High Efficient Plastic Rectifiers (Taiwan Semiconductor)
  • EGP20D - Super Fast Recovery Rectifier (TAITRON)
  • EGP20DH - SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
Other Datasheets by EIC
  • EGP20A - HIGH EFFICIENT RECTIFIERS
  • EGP20B - HIGH EFFICIENT RECTIFIERS
  • EGP20C - HIGH EFFICIENT RECTIFIERS

Full PDF Text Transcription

Click to expand full text
www.eicsemi.com EGP20A - EGP20D HIGH EFFICIENT RECTIFIERS PRV : 50 - 200 Volts Io : 2.0 Amperes DO-15 FEATURES : * High current capability * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Pb / RoHS Free 0.142 (3.6) 0.102 (2.6) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) MECHANICAL DATA : * Case : DO-15 Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.4 gram 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
