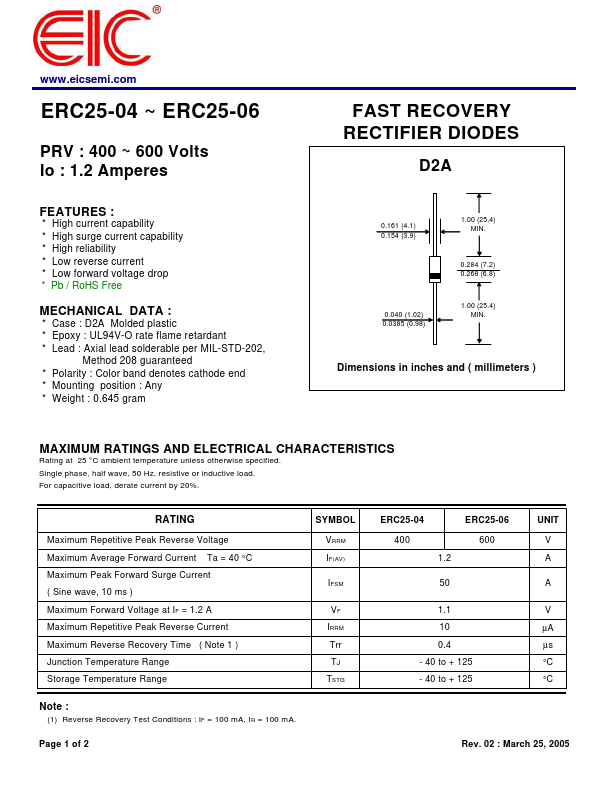

ERC25-06, ERC25-04 FAST RECOVERY RECTIFIER DIODES

ERC25-06 Description

www.eicsemi.com ERC25-04 ~ ERC25-06 PRV : 400 ~ 600 Volts Io : 1.2 Amperes .

ERC25-06 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : D2A Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ERC25-06, ERC25-04. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
ERC25-06, ERC25-04
Manufacturer
EIC
File Size
35.43 KB
Datasheet
ERC25-04-EIC.pdf
Description
FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: ERC25-06, ERC25-04.
Please refer to the document for exact specifications by model.
