FBR3500W - FAST RECOVERY BRIDGE RECTIFIERS

Datasheet Summary

Features

  • :.
  • High case dielectric strength.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Fast switching for high efficiency.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – FBR3500W

Datasheet Details

Part number FBR3500W
Manufacturer EIC
File Size 33.21 KB
Description FAST RECOVERY BRIDGE RECTIFIERS
Datasheet download datasheet FBR3500W Datasheet
Additional preview pages of the FBR3500W datasheet.

📁 Similar Datasheet

  • FBR-51 - (FBR-51 / FBR-52) Automotive Printed Circuit Board Relays (Fujitsu)
  • FBR-512 - (FBR-512 / FBR-522) Automotive Printed Circuit Board Relays (Fujitsu)
  • FBR-52 - (FBR-51 / FBR-52) Automotive Printed Circuit Board Relays (Fujitsu)
  • FBR-522 - (FBR-512 / FBR-522) Automotive Printed Circuit Board Relays (Fujitsu)
  • FBR06HA850NA-00 - Leaded Ferrite Bead Inductors (TAIYO YUDEN)
  • FBR10100 - Schottky Barrier Rectifiers (FCI)
  • FBR1035 - Schottky Barrier Rectifiers (FCI)
  • FBR1045 - Schottky Barrier Rectifiers (FCI)
  • FBR1060 - Schottky Barrier Rectifiers (FCI)
  • FBR1070 - Schottky Barrier Rectifiers (FCI)
Other Datasheets by EIC
  • FBR3500 - FAST RECOVERY BRIDGE RECTIFIERS
  • FBR3501 - FAST RECOVERY BRIDGE RECTIFIERS
  • FBR3501W - FAST RECOVERY BRIDGE RECTIFIERS
  • FBR3502 - FAST RECOVERY BRIDGE RECTIFIERS
  • FBR3502W - FAST RECOVERY BRIDGE RECTIFIERS
  • FBR3504 - FAST RECOVERY BRIDGE RECTIFIERS
  • FBR3504W - FAST RECOVERY BRIDGE RECTIFIERS
  • FBR3506 - FAST RECOVERY BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

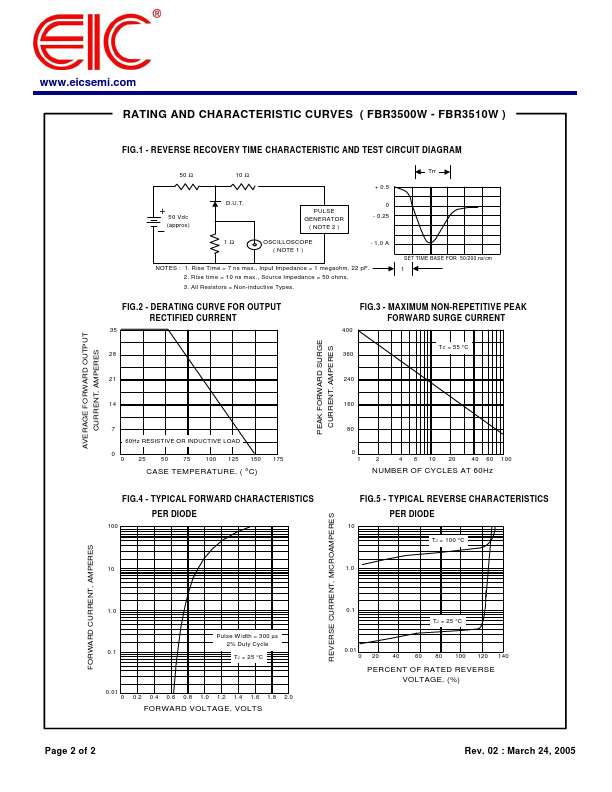

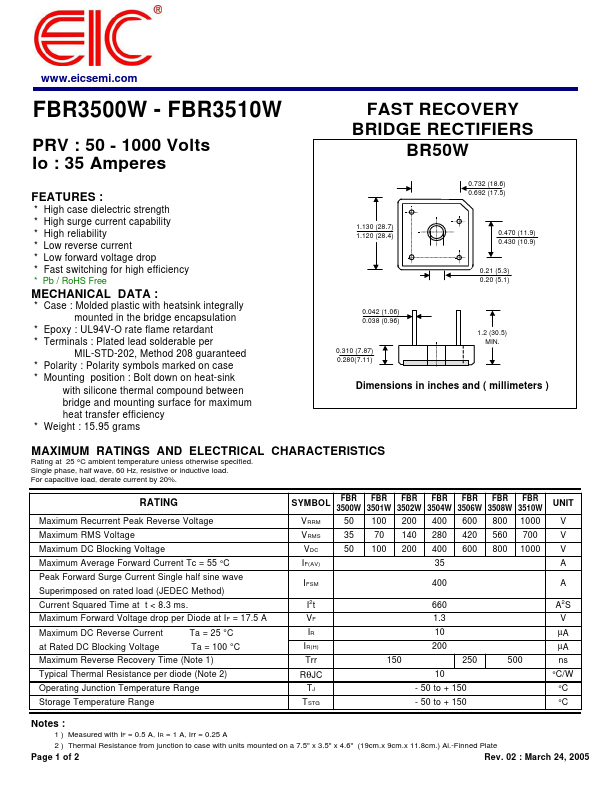

www.eicsemi.com FBR3500W - FBR3510W PRV : 50 - 1000 Volts Io : 35 Amperes FEATURES : * High case dielectric strength * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Pb / RoHS Free MECHANICAL DATA : * Case : Molded plastic with heatsink integrally mounted in the bridge encapsulation * Epoxy : UL94V-O rate flame retardant * Terminals : Plated lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Polarity symbols marked on case * Mounting position : Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency * Weight : 15.95 grams FAST RECOVERY BRIDGE RECTIFIERS BR50W 0.732 (18.6) 0.692 (17.5) 1.130 (28.7) 1.120 (28.
